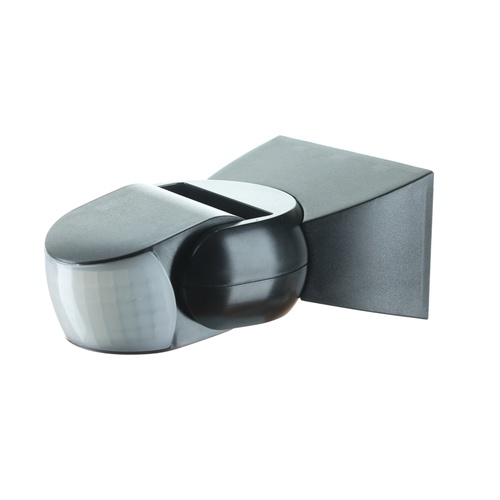

        Robus RPR180PIR-04 | Proton multi-directional 180°| Passive Infra red | IP54 | Black
        $33.27 $30.25 ex. GST
        Description

        Robus RPR180PIR-04 | Proton multi-directional 180°| Passive Infra red | IP54 | Black

        Proton multi directional sensor offers IP54 protection and features passive Infra-Red detectors that are designed using the latest electronic integrated chips to provide reliable, accurate detection to ensure that lighting is switched on only when required, but more importantly, switched off when the area is vacated to make much sought after energy savings
        Save electricity and the life of your fitting by controlling the on time with this sensor.

        Product Features

        • Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
        • Suitable for outdoor applications.
        • Manual over ride with automatic reset after 8 hours
        • Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out.
        • Earth terminal included
        • 3 wire - multiple sensors can be wired in parallel
        • High load contact rating, allows numerous fittings to be switched
        • No minimum load requirements
        • Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED
        • Adjustable time delay of 10sec to 15min
        • Adjsutable lux settings 3lx to 2000lx
        • Max detection area of 12m diameter at 2.5m
        • Complete with accessory shield to reduce detection angle
        • 5 Year Warranty

        (RPR180PIR-04)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Robus
        SKU RPR180PIR-04
        Barcode # 5391370062657
        Shipping Weight 0.2060kg
        Shipping Width 0.070m
        Shipping Height 0.085m
        Shipping Length 0.130m
        Shipping Cubic 0.000773000m3
        TYPE VALUE
        Type Sensor
        Colour Black
        Height (mm) 51
        Width (mm) 80
        Depth (mm) 118
        Protection IP54
        Sensor Detection Angle (Degrees) 180
        Sensor Max Detection Distance (meters) 12
        Frequency 50Hz
        Installation Area Indoor & Outdoor
        Voltage (V) 220-240V AC
