Learn more by watching our Theben LUXA-103-100-UA-WH | Luxa Ceiling 360° PIR Motion Switch | 12m video.
Additional related video.

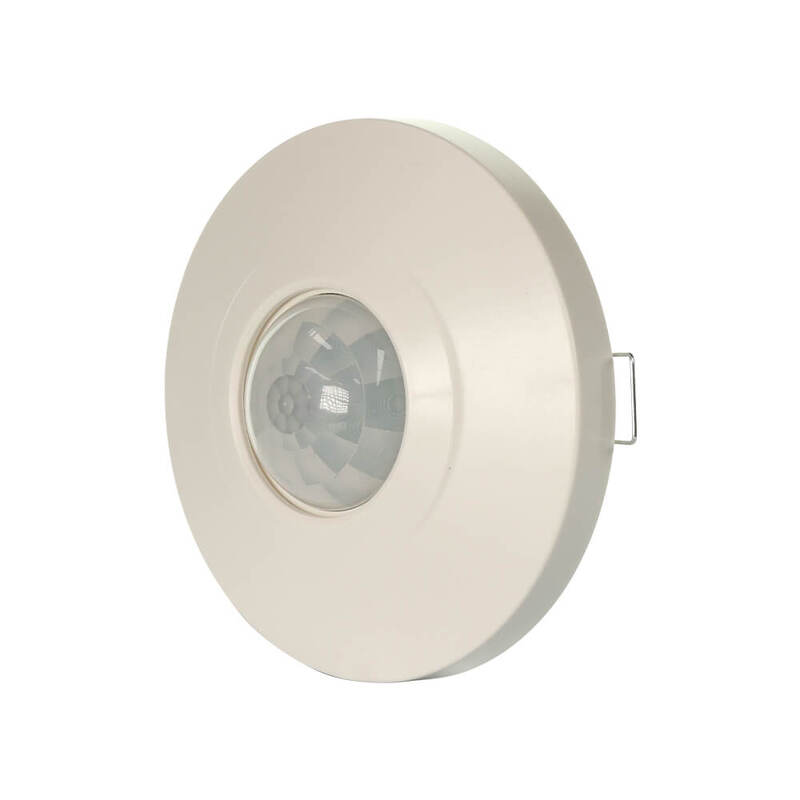

The Theben LUXA-103-100-UA-WH is a 360° ceiling motion switch with a detection range of up to 12 meters at a mounting height of 3 meters. It features a single light channel (Relay, 230 V) with an acoustic function, allowing activation by the PIR sensor and deactivation by the microphone.
Installation is flexible, with options for ceiling installation using clamping brackets, flush-mounted, or surface mounting with an optional surface frame. The switch supports mixed light measurement, making it suitable for controlling fluorescent, incandescent, and halogen lamps.
Additional features include zero-cross switching, adjustable brightness switching value, switch-off delay, sensitivity adjustment, and pulse and test functions.
Q: What is the detection range of this motion switch?
A: The detection range is up to 12 meters in a 360° circular area.
Q: Can this motion switch be installed on different types of ceilings?
A: Yes, it can be installed using clamping brackets, flush-mounted, or surface-mounted with an optional surface frame.
Q: Does the motion switch support different types of lamps?
A: Yes, it supports incandescent, halogen, fluorescent, energy-saving lamps, and LEDs.
(LUXA-103-100-UA-WH)
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Operating Voltage | 230 V AC |
| Frequency | 50 - 60 Hz |
| Stand-by Consumption | ~0.5 W |
| Light Measurement | Mixed light measurement |
| Number of Channels | 1 |
| Colour | White |
| Switching Output | Light |
| Installation Type | Ceiling installation, Indoor |
| Setting Range Brightness | 10 lx - 2000 lx |
| Detection Angle | 360° |
| Installation Height | 2.5 - 3 m |
| Light Switch-off Delay | 5 s - 30 min |
| Incandescent/Halogen Lamp Load | 2000 W |
| Fluorescent Lamp Load (Conventional, Parallel-corrected) | 900 VA 100 µF |
| LED Lamp < 2 W | 35 W |
| LED Lamp 2-8 W | 400 W |
| LED Lamp > 8 W | 400 W |
| Lamp Types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Detection Range | 113 m² (ø 12 m | 360°) |
| Detection Range Shape | Round |
| Ambient Temperature | -20°C ... 45°C |
| Protection Class | II |
| Type of Protection | IP 40 (when fitted) |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Theben |
| SKU | LUXA-103-100-UA-WH |
| Barcode # | 4003468101148 |
| Package Weight | 0.210kg |
| Package Width | 0.130m |
| Package Height | 0.120m |
| Package Length | 0.080m |
| TYPE | VALUE |
|---|---|
| Type | PIR Sensor |
| Brand | Theben |
| Colour | White |
| Operating Temperature | 230V AC |
| Detection Angle | 360° |
| Brightness Range | 10 lx - 2000 lx |
| Installation Height | 2.5 - 3 m |
