        CLIPSAL 30RJ45SMA5C-WE | RJ45 Socket Cat 5e Mechanism 30 Series White
        $6.71 $6.10 ex. GST
        Video

        Learn more by watching our CLIPSAL 30RJ45SMA5C-WE | RJ45 Socket Cat 5e Mechanism 30 Series White video.

        Description

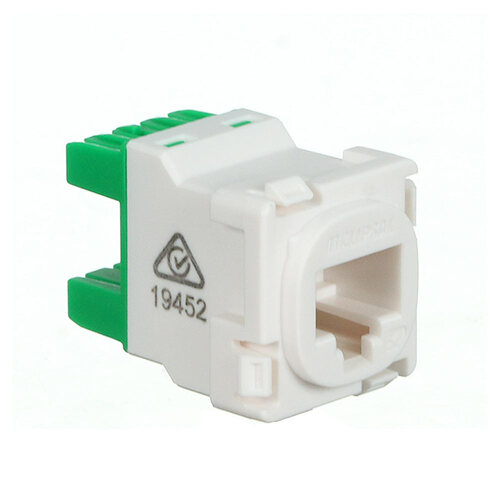

        CLIPSAL 30RJ45SMA5C-WE | RJ45 Socket Cat 5e Mechanism 30 Series White

        The Clipsal 30RJ45SMA5C-WE Category 5e RJ45 mechanism is easy to install utilising punchdown technology.
        These are now the most popular data socket sold by Clipsal for the domestic market.
        Today's modern home would not be complete without fast ethernet. With the ability to fit both horizontally or vertically the Cat 5e mechanisms can be found in all rooms both domestically or commercially. They can be accessorised with any interchangeable any Clipsal 2000 or Classic 2000 range bakelite wall plates.
        Electricians find these 30 series Cat 5e mechanisms easy to install, saving time and money at fit off.
        Clipsal RJ45 CAT 5e Mechanism is a essential electrical accessory when completing a dometic or work place ethernet project.

        Features:

        • Category 5e 30 Series Mechansim
        • Unshielded
        • Clear Cable Securing Clip
        • Suitable for Clipsal 2000 or Classic 2000 Series
        • Not Compatible with Iconic 40 series
        • Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568-B Series connecting hardware standards
        • UL 94V-0 Rated
        • Various colours for easier circuit identification
        • Can be used in multi-user teleco mmunication outlets
        • Flexible locking tabs for easy removal from wall plates
        • Clear IDC caps allow for termination verification and assist in cable retention
        • -40 to 70 deg C Temperature range
        • Nickel plating
        • 0.7 - 1.6 mm Insulation diameter
        • Fire retardant UL 94v-0,
        • Plastic cover

        (30RJ45SMA5CWE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 30RJ45SMA5CWE
        Barcode # 3606489512385
        Shipping Weight 0.0110kg
        Shipping Width 0.040m
        Shipping Height 0.020m
        Shipping Length 0.030m
        Shipping Cubic 0.000024000m3
        TYPE VALUE
        Type TV Data Phone
        Brand Clipsal by Schneider Electric
        Range Series 30
        Colour White
        Height (mm) 22
        Width (mm) 16
        Length (mm) 36
        Plug Compatibility RJ45 & RJ11
        Cable Compatibility UTP
        Network Category 5e
        Contact Configuration 8 Pin
