        Fan Motor Universal Stokes | OFM-01 V3 / 9683

        The Oven Fan Motor Universal Stokes | OFM-01 / 9683 is the perfect solution for those having issues with their oven fan motor. Maybe burnt out or faulty.

        This product is designed to fit most oven models and brands, making it a versatile choice for easy and convenient repair.

        The OFM-01 / 9683 features high-quality construction with a durable and reliable universal design that will provide long-lasting performance for years to come. With its compact size and simple installation process, this fan motor is the ideal choice for electricians or appliance repairers to fix faulty ovens without the hassle. So if you're tired of dealing with a faulty oven fan motor, choose the Oven Fan Motor Universal Stokes | OFM-01 / 9683 and enjoy a fully functional oven once again!

        Design features:

        • Three shaft lengths
        • Front and Rear Mount
        • 1200RPM
        • Includes Fan assembly

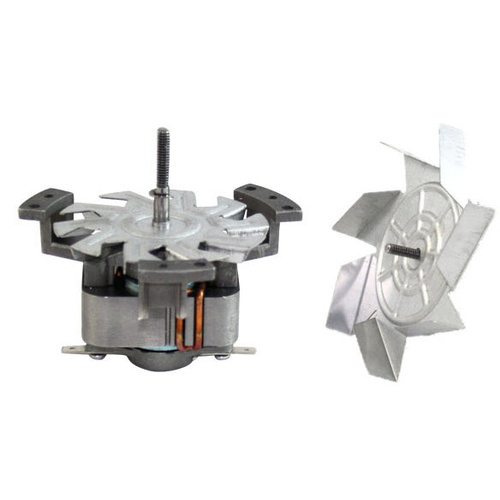

        The replacement fan motor has two fan blades.

        • The one closest to the motor is designed for cooling the motor, and
        • The second 7-blade fan is designed to fit inside the oven and circulate the hot air internally in the oven.
        • the 7-blade fan has a diameter of 150mm from the edge of the fan blade to the edge of the fan blade. Or a radius of 75mm from the centre hole to the blade's edge.

        The fan motor is mounted on the back of the oven via a universal mounting frame attached to the motor - The mounting holes have a radius of 50mm from the centre, with multiple mounting options.

        Kit Contents:

        • 2 x Spacers
        • 2 x Washers
        • 1 x Left Hand Thread Nut
        • 3 x Countersunk Screws
        • 3 x Mushroom Head Screws and Washers
        • 1 x Reflector Plate - 135mm Diameter
        • 1 x Universal Fan Blade - 150mm Diameter
        • 1 x Insulation Disc - 130mm Diameter

        Adaptable Shaft Length:

        6mm (9mm to mounting plate)
        Replaces - Chef
        Alt part numbers: Stokes 9683, Electrolux 56158, EGO EFC200158, EFC200157.
        Instructions - Washer below fan blade, install two spacers, then the nut.

        14mm (17mm to mounting plate)
        Replaces - Westinghouse, late Chef
        Alt part numbers: Stokes 9683, Kleenmaid 3040401, Electrolux 0214777077, EGO EFC200153, St George S50862
        Instructions - Install 1 spacer below the blade then lock nut onto 1 spacer and Washer.

        22mm (25mm to mounting plate)
        Suits Westinghouse Stgeorge and F&P

        Alt part numbers: Stokes Fisher and Paykel 573300P, Ego EFC200166, Electrolux 445680
        Instructions - Install two spacers below the blade then lock nut onto the Washer.

        Universal fan motors must be installed by qualified service personnel only. This is not a DIY item.

        Manufacturers quoted are for cross-reference purposes only and are in no way to be considered endorsements of any kind.

        (OFM-01)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Wilson Elements
        SKU OFM-01
        Package Weight 1.021kg
        Package Width 0.150m
        Package Height 0.125m
        Package Length 0.150m
        TYPE VALUE
        Type Fan Motor
        Model Universal Oven Fan
