    Learn more by watching our Clipsal 4RCBE410/30 | 4 Pole 10Amp 30mA RCBO | 6kA RCD/MCB video.

    Description

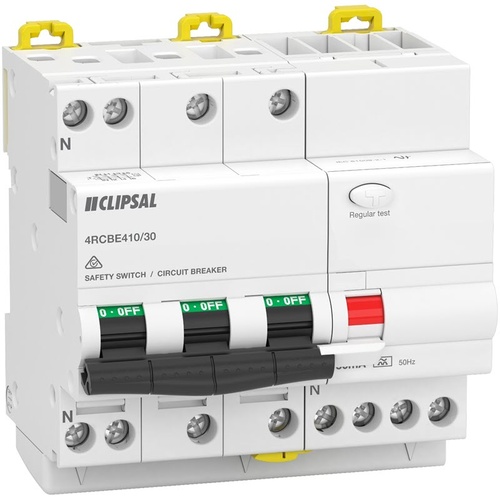

    Clipsal 4RCBE410/30 | 4 Pole 10Amp 30mA RCBO | 6kA RCD/MCB

    Clearance 5 Left - NO RETURNS

    The Clipsal 4RCBE410/30 is a three phase 3P+N RCBO. It is rated at 6kA so it is ideal for residential and commercial applications. This RCBO can be used to protect 3 phase equipment, it makes fault finding simple as it controls one circuit, should a fault occur, it will only effect the one control device leaving the rest of the operation working as normal.

    Features:

    • Full installation flexibility with the option of having line connection either from top or bottom
    • Type A earth leakage protection to provide additional safety to end user
    • Green strip on the toggle that guarantees opening of all the poles in safety conditions
    • Easy fault identification with visible red tripping flag to identify earth leakage tripping
    • Clear marking of neutral on left side

    Specifications:

    • Poles: 3P + N
    • Number of protected Poles: 3
    • Rated Current (In): 10 A
    • Curve: C Curve
    • Earth Leakage Sensitivity: 30mA
    • Earth Leakage protection Class: Type A
    • Breaking Capacity: 6 kA
    • Rated Voltage: 380...415 V AC
    • Height: 91 mm
    • Width: 90 mm
    • Depth: 78.5 mm



    This product has been replaced with

    (4RCBE410-30)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    SKU 4RCBE410-30
    Barcode # 3606489698690
    Package Weight 0.548kg
    Package Width 0.085m
    Package Height 0.125m
    Package Length 0.112m
    TYPE VALUE
    Type Circuit Protection
    Brand Clipsal by Schneider Electric
    Range Resi Max
    Rated Current (A) 10
    Height (mm) 91
    Width (mm) 90
    Depth (mm) 78.5
    Standards AS/NZS 61009
    Mounting Din Rail
    Voltage (V) 415
    Number of Poles 3P+N
    IP Rating IP20 ( IP40 Enclosed )
    Breaking Capacity 6kA
    Box increments (This item is sold individually) 1
    Earth Leakage Sensitivity 30mA
    Earth Leakage Protection Class Type A
    Curve C
    Total Number of modules 5
