        Major Tech MT723 | 400A AC/DC True RMS Clamp Meter
        $200.20 $182.00 ex. GST

        Learn more by watching our Major Tech MT723 | 400A AC/DC True RMS Clamp Meter video.

        Additional related video.

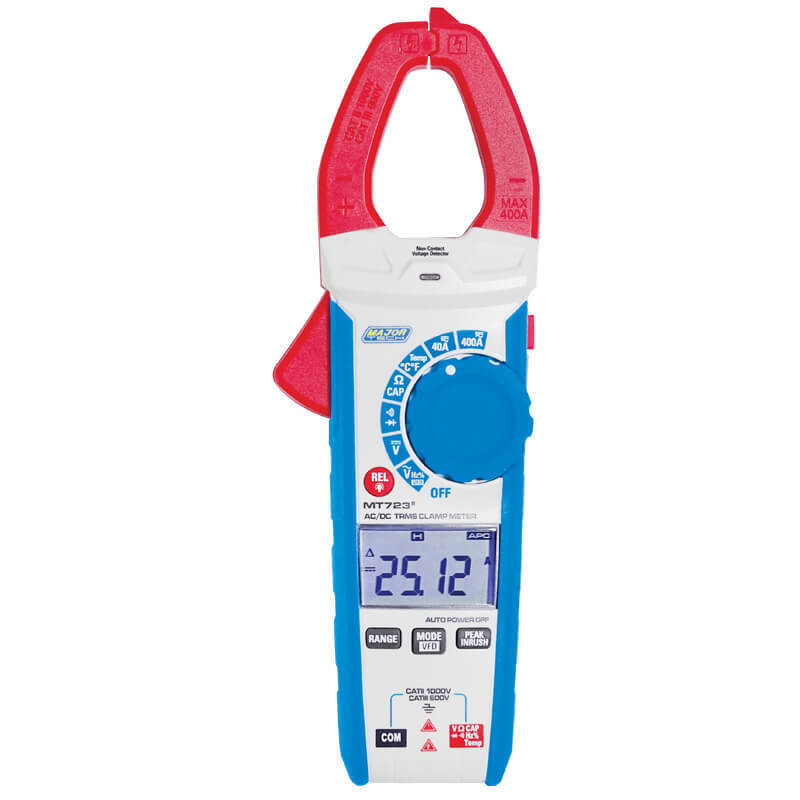

        Major Tech MT723 | 400A AC/DC True RMS Clamp Meter


        The MT723 is a CAT III 600V, 4000 count True RMS 400A AC/DC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.


        • CAT III 600V and CAT II 1000V
        • 4000 count backlit LCD display
        • Ø30mm Cable Clamp size
        • Measurement of DC voltage and AC voltage up to 1000V
        • Capacitance to 100mF
        • Temperature measurement from -20⁰C to 1000⁰C
        • INRUSH Current Measurements
        • VFD – Variable Frequency Drive voltage value
        • NCV – Non-Contact Voltage Detector
        • Built-In Flashlight
        • Continuity buzzer and Diode Test
        • Peak Mode and Data Hold function
        • Auto Power Off



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct



        Function Range Resolution Accuracy
        DC Current 40.00A – 400.0A 0.01A ±(2.5% + 8 Digits)
        AC Current 40.00A – 400.0A 0.01A ±(2.5% + 5 Digits)
        DC Voltage 400mV – 600.0V 0.1mV ±(0.8% + 2 Digits)
        AC Voltage 400mV – 600.0V 0.1mV ±(1.0% + 30 Digits)
        Resistance 400.0Ω – 40.00MΩ 0.1Ω ±(1.0% + 4 Digits)
        Frequency 10Hz – 10kHz 1Hz ±(1.5% + 2 Digits)
        Capacitance 40.00nF – 100.0μF 0.01nF ±(4.0% + 20 Digits)
        Temperature -20 to 760°C 0.1°C ±(3% + 5°C Digits)
        Duty Cycle 0.5 to 99.0% 0.001 ±(1.2% + 2 Digits)
        AC Bandwidth 50Hz to 60Hz
        Digital Display 4000
        Overrange indication Yes
        Continuity Yes
        Diode Test Yes
        Jaw Size 30mm
        Input Impedance >10MΩ DCV & >10MΩ VAC
        Peak Hold Yes
        Data Hold Yes
        Back Light Yes
        Enclosure Double moulded case
        Low Battery Indication Yes
        Batteries 3x AAA
        Weight 183g
        Dimensions 197 x 70 x 40mm
        Safety Specs IEC61010-1 CAT III 600V

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT723
        Barcode # 6008229008016
        Shipping Weight 0.5430kg
        Shipping Width 0.060m
        Shipping Height 0.120m
        Shipping Length 0.238m
        Shipping Cubic 0.000686000m3
        TYPE VALUE
        Type AC Clamp Meter
        Brand Major Tech
        Height (mm) 39
        Width (mm) 80
        Length (mm) 220
