Learn more by watching our Major Tech MT694 | 1000ºC Multipoint Laser Infrared Thermometer video.
Additional related video.
Description:

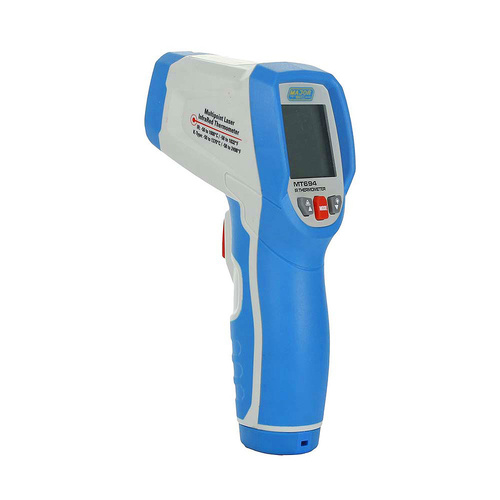

The MT694 is a small and compact pistol grip type infrared thermometer which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50°C to 1000°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.10 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Features:
(MT694)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
Infrared Temperature Range | -50°C – 1000°C | 0.1°C | ±(1% ± 1°C) |
Type-K Temperature Range | -50°C – 1350°C | 0.1°C | ±(0.5% ± 1.5°C) |
Spectral Response | 8 to 14um | ||
Display | LCD Display | ||
Spot Ration | 20:1 | ||
Adjustable Emissivity | 0.10 – 1.0 | ||
Laser Targeting | Multi Point | ||
Min/Max/Diff/Ave | Yes | ||
Hi/Low Alarm | Yes | ||
Back Light | Yes | ||
Enclosure | Moulded IP54 | ||
Low Battery Indication | Yes | ||
Batteries | 2 x AAA | ||
Weight | 248g | ||
Dimensions | 170 x 50 x 90mm |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT694 |
Barcode # | 6008229008146 |
Package Weight | 0.347kg |
Package Width | 0.060m |
Package Height | 0.200m |
Package Length | 0.120m |
TYPE | VALUE |
---|---|
Type | Thermometer |
Brand | Major Tech |
Height (mm) | 85 |
Width (mm) | 50 |
Length (mm) | 170 |
