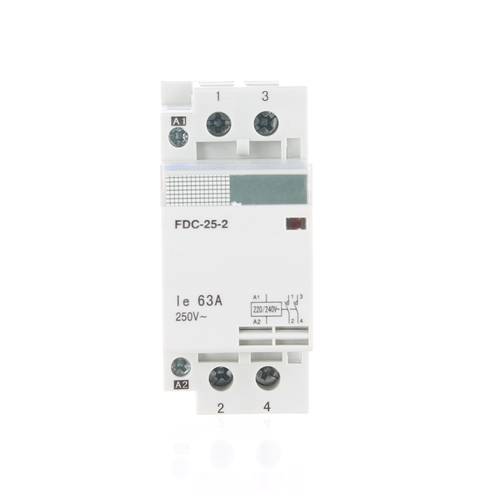

        NLS 30544 | 63Amp 2 Pole Modular Contactor 240v | 2 x N/O
        $21.89 $19.90 ex. GST
        Video

        Learn more by watching our NLS 30544 | 63Amp 2 Pole Modular Contactor 240v | 2 x N/O video.

        Description

        NLS 30544 | 63Amp 2 Pole Modular Contactor 2 Pole 240v |  2 x N/O

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The NLS 30544 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The 30544 is a 63 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • 63A (Ac1-Ac7a)
          • Ac1 = Resistive Loads
          • Ac3 = Inductive Loads
          • Ac7a = Slightly inductive loads in household appliances
        • 25A ( Ac7b)
          • Ac7b = Motor-loads for household appliances
        • 2 x N/O Contacts
        • 240V
        • 2 Pole
        • Din Mount

        (30544)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30544
        Barcode # 9336700011505
        Shipping Weight 0.2380kg
        Shipping Width 0.075m
        Shipping Height 0.040m
        Shipping Length 0.085m
        Shipping Cubic 0.000255000m3
        TYPE VALUE
        Type Contactor
        Brand National Light Sources
        Rated Current (A) 63
        Height (mm) 82
        Width (mm) 36
        Depth (mm) 68
        Protection IP20
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 2
        Contact Configuration 2 x N/O
        Number of Modules 2
