    Learn more by watching our Pulset KWHM/1 | Single Phase 30amp KW Hour Meter | 1 Module video.

    Description

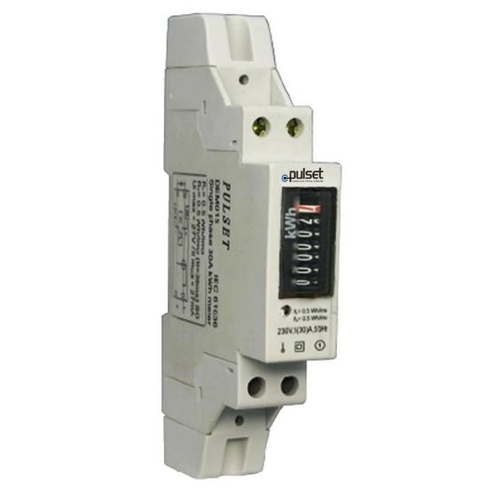

    Pulset KWHM/1 | Single Phase 30amp KW Hour Meter | 1 Module

    This Kilowatt Hour Meter is used for private metering as it is not NMI-approved (billing applications)

    The Pulset KWHM/1 is a compact single-phase kilowatt hour meter ideal for private sub-metering where NMI billing approval is not required. Designed for space-saving DIN rail mounting, this 1-module wide meter fits neatly into switchboards with limited room.

    Rated for 30A maximum load and 50Hz operation, it delivers reliable energy monitoring for workshops, industrial setups, or private residential applications. Built to IEC standards, it ensures dependable performance for non-billing purposes.

    KWHM/1 Features

    • 30A Maximum Load: Handles typical single-phase private metering requirements.
    • DIN Rail Mount (1 Module): Compact form for easy switchboard integration.
    • IEC Standard Compliant: Ensures safe and accurate energy measurement.
    • 50Hz Frequency Rated: Suitable for Australian standard power systems.
    • Private Metering Use: Designed for non-billing applications only.

    KWHM/1 FAQ

    Q: Can I use this meter for billing?
    A: No, it’s for private monitoring only and not approved for billing purposes.

    Q: How much space does it take on a DIN rail?
    A: It occupies a single DIN module width.

    Q: What’s the maximum load capacity?
    A: The meter is rated for up to 30A.

    (KWHM-1)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Model KWHM/1
    Maximum Current 30A
    Rated Voltage AC 230V
    Rated Frequency 50(60)Hz
    Phase Single Phase
    Starting Current 0.4%Ib
    Insulation Performance AC withstand 2kV for 1 min; Impulse withstand 6kV - 1.2/50μs waveform
    Accuracy Class Class 1.0
    Dimensions 65mm (L) x 116mm (H) x 17.5mm (W)
    Installation Method DIN rail
    Humidity Less than 75%
    Operating Temperature -25°C to +55°C
    Storage Temperature -30°C to +65°C
    Display Digital Only
    RCM Approval N17795
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Pulset
    SKU KWHM-1
    Model # KWHM/1
    Barcode # 7857381003150
    Package Weight 0.087kg
    Package Width 0.080m
    Package Height 0.020m
    Package Length 0.115m
    TYPE VALUE
    Type Kilowatt Hour Meter
    Brand Pulset
    Height (mm) 116
    Width (mm) 17.5
    Depth (mm) 65
    Mounting Din Rail
    Battery Backup No
    Single or 3 Phase Single Phase
    Analog or Digital Analog
