        Clipsal MX9B157P| Clipsal Pin Busbar 1P 57 modules 100A
        $86.80 $78.91 ex. GST
        Video

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

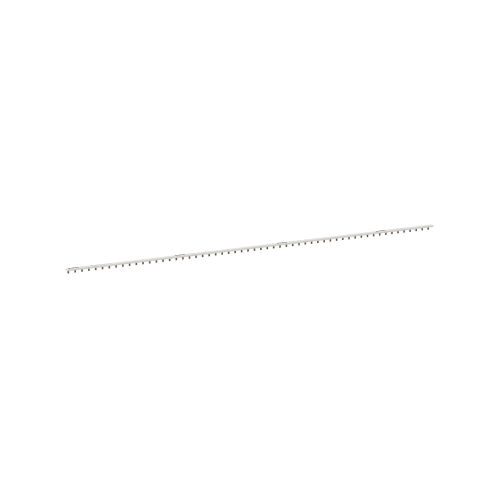

        Clipsal MX9B157P | Clipsal Pin Busbar 1P 57 modules 100A

        MAX9 MX9B157P is a Pin comb busbar. The rated current is 100A. It is 1P and 57 modules.

        • Comb busbar mounting mode is horizontal and cuttable.
        • This product comes with end-pieces and tooth covers.
        • It is dedicated to the residential market.
        • The Ue rated operational voltage is 230VAC or 415VAC.
        • The Ui rated insulation voltage is 500V.
        • The dimensions are (W) 920mm x (H) 15mm x (D) 15mm.
        • The Colour is white electric (RAL9003).
        • The comb busbar colour is white electric (RAL9003)

        (MX9B157P)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9B157P
        Barcode # 9311554814779
        Shipping Weight 0.2200kg
        Shipping Width 0.010m
        Shipping Height 0.015m
        Shipping Length 0.990m
        Shipping Cubic 0.000149000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 100
        Equivalent Max 4 Reference 4BB1
        Number of Modules 57
