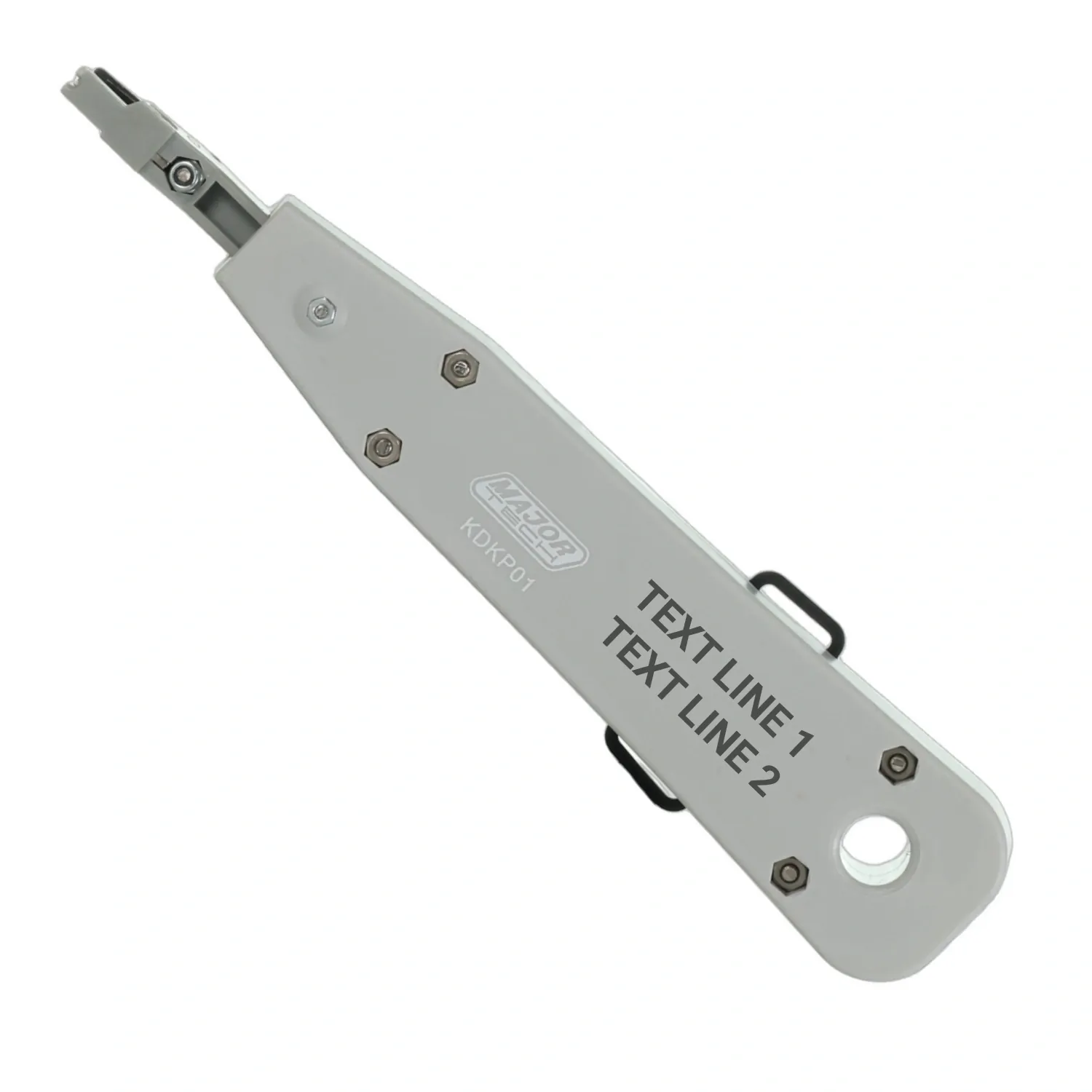

        Major Tech | Custom Engraved Punchdown Tool for Krone Style Blocks | 180mm

        The Major Tech SD-CUSTOM-KDKP01 is a punchdown tool with custom text engraved by Sparky Direct. The engraving runs to two lines of up to 8 characters each. The KDKP01 seats and trims a wire into a Krone style block in one action, driven by an internal spring. The tool is 180mm long and 33mm wide.

        A punchdown tool is small enough to disappear into whichever pouch it was last used from. A name on the handle in marker wears off against the other tools in there. The SD-CUSTOM-KDKP01 carries two engraved lines of 8 characters, cut in before it ships. It reads as part of the tool rather than something added later.

        Features

        • Custom engraved to order — Sparky Direct engraves the text you supply before the SD-CUSTOM-KDKP01 is dispatched.
        • Two lines, 8 characters each — a name over a business, or initials over a crew number, inside an eight character limit per line.
        • Krone style blocks — the tool is built as a punchdown and insertion tool for Krone style blocks.
        • Insert and trim in one action — the wire is seated and the tail trimmed in the same stroke.
        • Spring triggered — an internal spring fires once the tool reaches the required pressure, so the stroke is the same every time.
        • Blade cuts the insulation — the blade displaces the insulation as it drives the conductor into the slot.
        • 180mm long — the body runs to 180mm, which is pouch and pocket sized.
        • Datacom tool — Major Tech classes the KDKP01 as a datacom tool rather than a general purpose one.

        Where to use

        • Comms cabinets and racks — Krone style blocks are what this tool is built around, which covers most structured cabling termination.
        • Shared data crews — the engraved lines put a name on a tool small enough to go missing between jobs.
        • Repeat terminations — seating and trimming in one action keeps the stroke consistent down a block.
        • Pouch and pocket carry — at 180mm it sits with the strippers and the tester rather than in the bottom of a bag.

        The KDKP01 is specified for Krone style blocks, and nothing published covers 110 style blocks. The blade is not listed as replaceable, so it is not a tool to buy spare blades for. Engraving cannot be altered once cut, so check the spelling before ordering, and no change of mind returns apply to customised products.

        (SD-CUSTOM-KDKP01)

        The SD-CUSTOM-KDKP01 is a standard Major Tech KDKP01 punchdown tool with your own wording engraved on it by Sparky Direct. It seats a wire into a Krone style block and trims the tail in the same action.

        Two lines, up to 8 characters each. That is a tighter limit than the other engraved tools, so a surname or an abbreviated business name works better than a full one. Text size and position can shift a little depending on the characters supplied.

        Krone style blocks. That is what Major Tech specifies it for, and nothing in the published spec covers 110 style blocks. Check the block type before ordering if the site runs a mix.

        The wire is positioned into the slotted post first, then the tool is pressed down over the post. Once it reaches the set pressure, an internal spring fires and the blade drives the wire into the slot, cutting through the insulation and seating the conductor.

        Not according to anything Major Tech publishes for this model. There is no replaceable blade listed and no blade storage in the handle, so treat it as a fixed tool rather than one you keep spares for.

        180mm long and 33mm wide. That is pouch sized, which is part of why a punchdown tool is worth engraving in the first place.

        No. The engraving is cut to order, so change of mind refunds and returns do not apply. Warranty runs two years for both domestic and commercial use from the invoice date, claimed by returning the tool to Sparky Direct. Report faulty or damaged goods within 24 hours.

        The Major Tech SD-CUSTOM-KDKP01 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct




        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU SD-CUSTOM-KDKP01
        Model # SD-CUSTOM-KDKP01
        Barcode # 2000000014050
        Package Weight 0.070kg
        View Datasheet
        TYPE VALUE
        Type Punchdown Tools & Accessories
        Brand Major Tech
        Width (mm) 33
        Length (mm) 180
