        SAL DIM75/24V/FC | Dimmable LED Driver Constant Voltage 75w 24VDC
        $92.40 $84.00 ex. GST
        Description

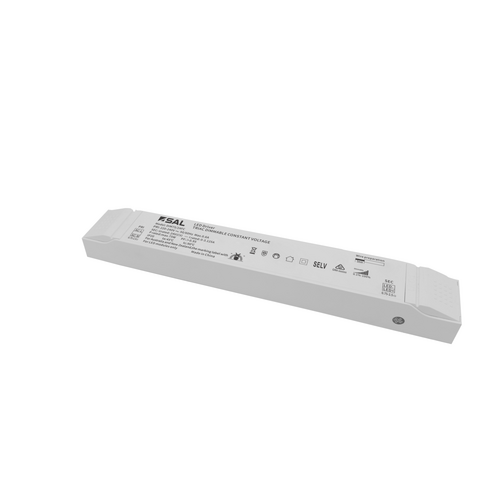

        SAL DIM75/24V/FC | Dimmable LED Driver Constant Voltage 75w 24VDC

        Reliable constant voltage,  trailing edge dimmable driver 75 watt

        The SAL Pluto LED Constant Voltage Driver is non-weatherproof.

        Installing low-voltage garden lighting/strip lighting or simply driving low-wattage devices,

        The DIM75/24V/FC

        • 75 watt / 24V
        • Trailing edge dimming control
        • Overload and short-circuit protection
        • SELV and EMC compliant
        • Fixed terminal termination
        • FlickerCONTROLLED technology
        • Electrical class II, Do Not Cover.
        • Dimensions: (LWH) 300 x 43 x 31mm
        • Power Factor .95
        • Dimmable - YES
        • Dimmer Type - Trailing or Leading Edge

        (DIM75-24V-FC)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SAL
        SKU DIM75-24V-FC
        Barcode # 9328623131262
        Shipping Weight 0.2130kg
        Shipping Width 0.043m
        Shipping Height 0.031m
        Shipping Length 0.300m
        Shipping Cubic 0.000399900m3
        TYPE VALUE
        Type Lighting
        Brand SAL
        Height (mm) 31
        Width (mm) 43
        Length (mm) 300
        Standards SELV and EMC compliant
        Protection IP20
        Power Factor 0.9
        Driver Type 24V 75Watt Dimmable Constant Voltage
        Wattage (W) 75
        Circuit Protection Overload and Short Circuit
        Output Voltage 24V/DC
        Termination Hard Wired
        Input Voltage 240Vac
        Dimmable Yes
