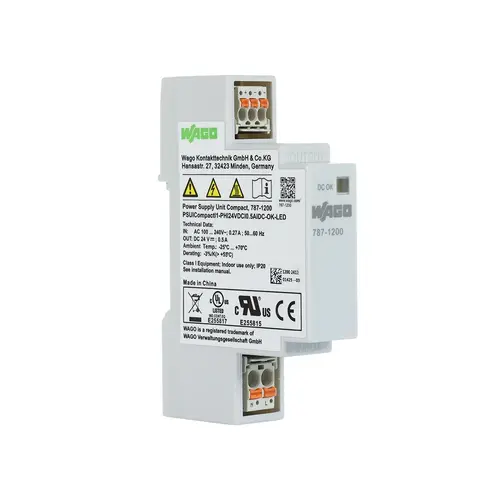

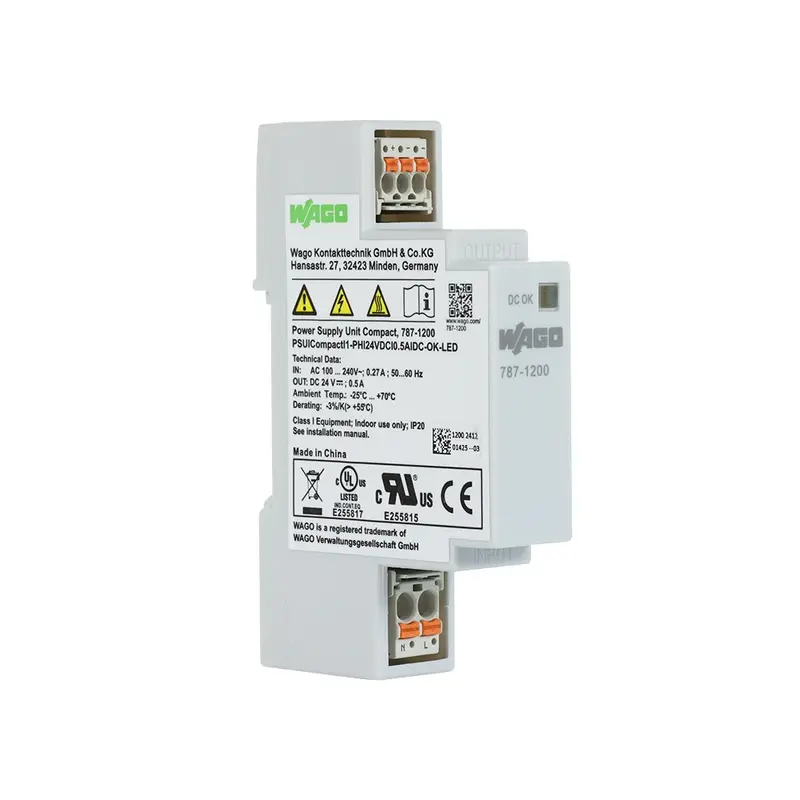

Name: Wago 787-1200 | Switch Mode Power Supply 1 Phase 12V DC 0.5A 12W
Brand: Wago
SKU: 787-1200
Price: 61.51 AUD
Availability: InStock

Wago 787-1200 | Switch Mode Power Supply 1 Phase 12V DC 0.5A 12W

The Wago 787-1200 Switch Mode Power Supply provides a stable 12V DC output with a 0.5A capacity and a total power output of 12W, making it well-suited for compact control systems. Designed with a slim, stepped profile, it integrates efficiently into standard distribution boards and mounts easily on DIN rails for a space-saving setup.

This unit accepts a wide AC input range (90-264V) and features Wago’s tool-free picoMAX® push-in connection technology, allowing for quick and secure wiring. A green DC OK LED indicator offers real-time status updates, while built-in protections—including short-circuit, overload, and overvoltage protection—enhance its reliability. The power supply’s SELV-compliant, isolated output (meeting EN 62368 and EN 60335-1 standards) adds a layer of safety for use in control and automation environments.

Wago 787-1200 Features:

12V DC Output (0.5A, 12W): Provides steady power for low-voltage applications in compact control systems.

AC Input Compatibility: Accepts a wide AC range (90-264V), offering installation flexibility.

Stepped Profile Design: Compact design for seamless integration into standard distribution boards, saving space.

picoMAX® Push-In Connections: Enables fast, tool-free setup for secure wiring.

DC OK LED Indicator: Provides operational status for quick diagnostics.

Built-In Safety Features: Offers protection against overload, short-circuit, and overvoltage conditions.

SELV-Compliant Output: Isolated output enhances safety for control and automation systems.

Wago 787-1200 FAQ:

Q: What type of input voltage is compatible with this unit?
A: It accepts AC input voltage ranging from 90 to 264V, providing flexibility for diverse installations.

Q: What is the output capacity of this power supply?
A: It provides a stable 12V DC output with a 0.5A capacity, totalling 12W.

Q: Can this power supply be mounted on DIN rails?
A: Yes, it has a compact, stepped profile designed specifically for DIN-rail mounting in distribution boards.

Q: Does this unit include safety protections?
A: Yes, it features built-in protections for overload, short-circuit, and overvoltage conditions, ensuring safe operation.

Specification

Details

Item Number

787-1200

Input Voltage

100-240 V AC

Output Voltage

24 V DC

Output Current

0.5 A

Output Power

12 W

Efficiency

83%

Protection Type

IP20

Operating Temperature

-25°C to +70°C

Dimensions (WxHxD)

18 x 90 x 55 mm

Weight

63 g

Standards/Approvals

EN 60335-1, UL 62368, CE

TYPE

VALUE

Type

Power Supply

Brand

Wago

Number of Modules

Input Voltage (V/AC)

100 - 240

Output Voltage (V/DC)

Output Current (A)

0.5

Output Wattage (W)

Efficiency

83%

Brand	Wago
SKU	787-1200
Barcode #	4055143812184
Package Weight	0.100kg
Package Width	0.095m
Package Height	0.080m
Package Length	0.030m
