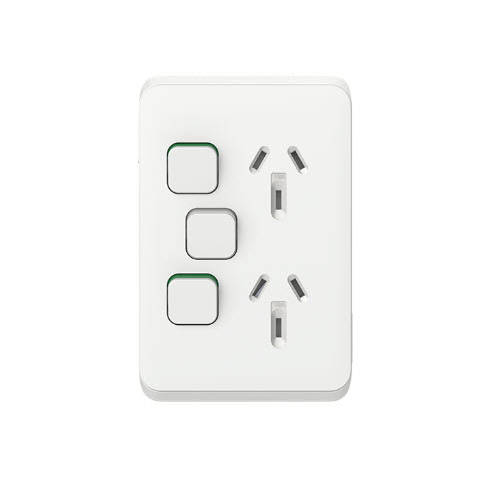

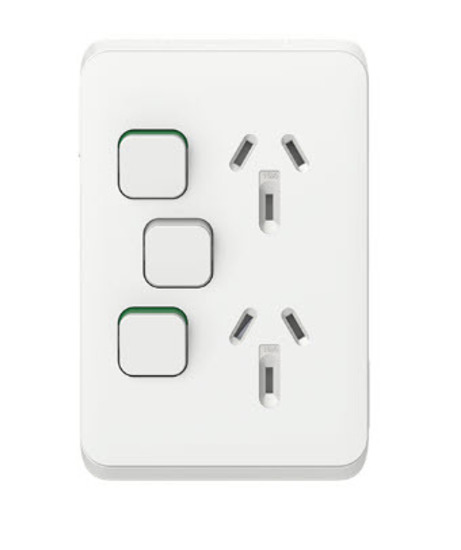

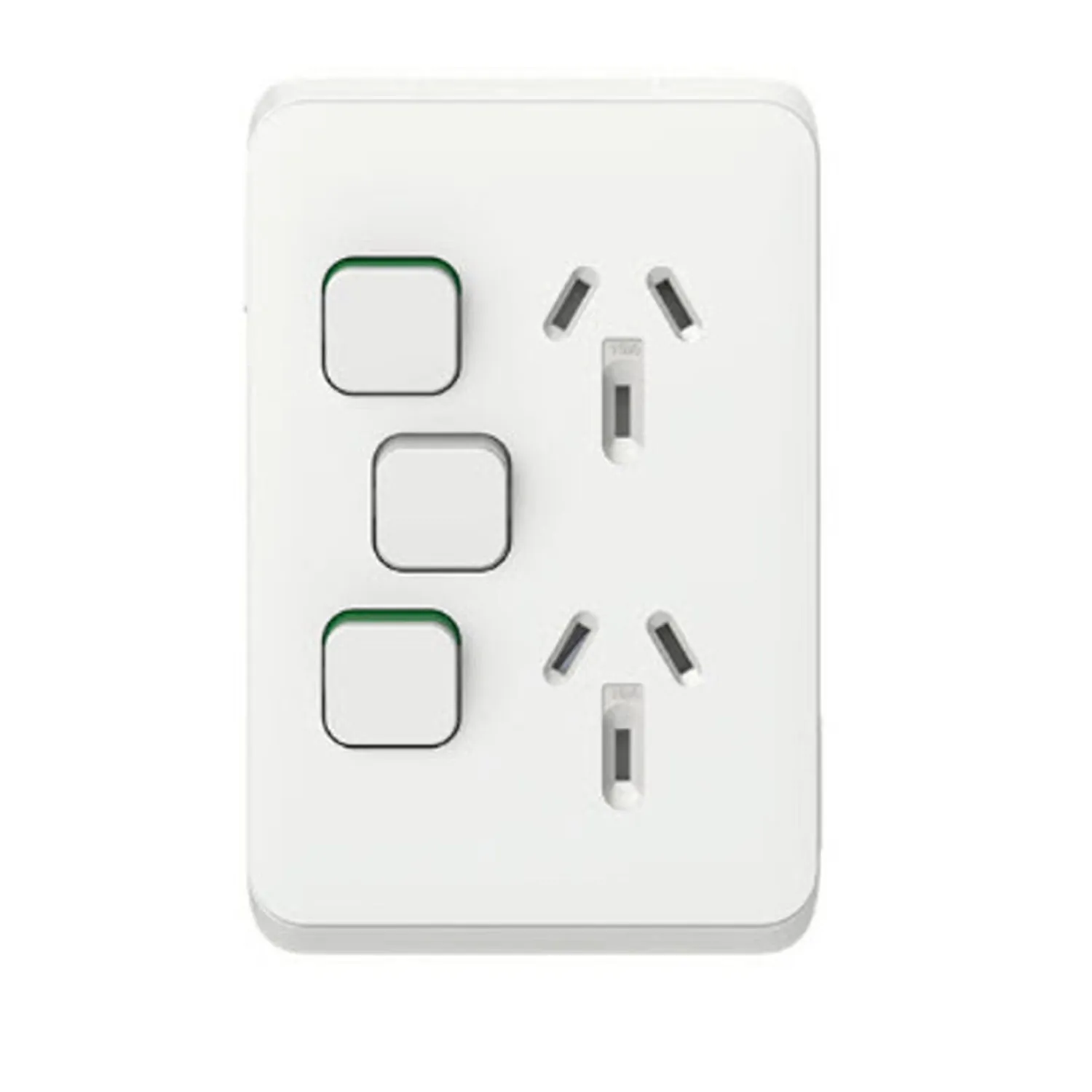

Clipsal Iconic 3025VXA-VW | Twin Switch Socket Outlet, Vertical Mount, 250V, 10A with Removable Extra Switch

3025VXA-VW
$65.94(inc. GST) $59.95(ex. GST)
In Stock
Shipping only $10.95 Fast delivery Australia wide, Excludes Bulky Items, remote areas
30 day return Fuss and hassle free returns
Secure Shopping Risk free experience

Clipsal Iconic 3025VXA-VW | Twin Switch Socket Outlet, Vertical Mount, 250V, 10A with Removable Extra Switch

Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.

Please allow 3-7 Days for this product to be dispatched - Ordering this product may delay your complete order getting dispatched.

(3025VXA-VW)

Clipsal Iconic 3025VXA-VW | Twin Switch Socket Outlet, Vertical Mount, 250V, 10A with Removable Extra Switch

Product Specifications and Characteristics (ETIM Industrial Standard)

These specifications and characteristics outline physical, mechanical, electrical details.

Type Value
Brand Name Clipsal Iconic
Depth 35 mm
Height 120 mm
Material Skin - PC (polycarbonate)
Skin - ABS (acrylonitrile butadiene-styrene)
Grid plate - PC (polycarbonate)
Flaps - PP (polypropylene)
Shutter - POM (polyoxymethylene)
Switch - PC (polycarbonate)
Switch - PA66
Locking bar - POM (polyoxymethylene)
Switch function 2-way
Width 78 mm
Product or component type Switch and socket-outlet
Device mounting Flush
Device presentation Gridplate with switch and skin
Outlet poles configuration 1P + E
Outlet standard Australian/New Zealand
Outlet standard description With earthing contact
Ground lug position Straight 180deg position
Fixing mode By screw
Colour tint Vivid white
Surface finish Matt
Type of packing Polybag
Quantity per set Set of 10
Sale per indivisible quantity 1
Ambient air temperature for storage [0,60] deg C
Rated current Socket - 10 A
Switch - 10 AX
Ambient air temperature for operation [0,45] deg C
Electrical durability 12000 cycles
Connections - terminals Screw terminal
Shape of screw head Philips No 2 (PH2)
Square drive no 1 (SQ1)
Wire stripping length 16 mm
Embedding depth mm
Product weight 0.092 kg
Standards AS/NZS 3112
AS/NZS 60669.1
AS/NZS 3133
Product certifications RCM
[Ue] rated operational voltage 250 V, AC, 50 Hz
Ambient humidity for operation [10,95] Percent
Number of terminals 3
Socket number 2
Cover type With shutter
Mounting mode Vertical
Integrated connection type
Service life in cycles 12000 cycles
Cables Up to 4, 2.5 square mm, stranded
Up to 4, 2.5 square mm, flexible
Up to 4, 2.5 square mm, rigid
SKU 3025VXA-VW
