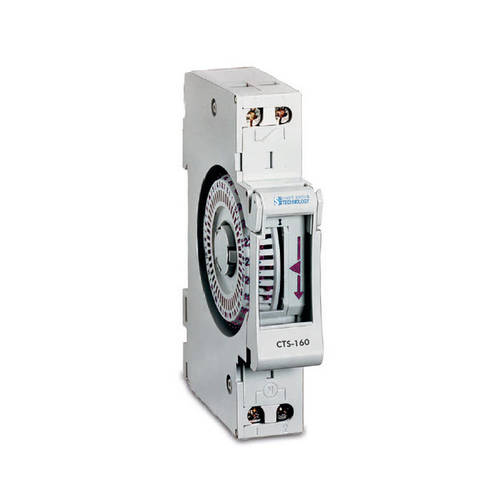

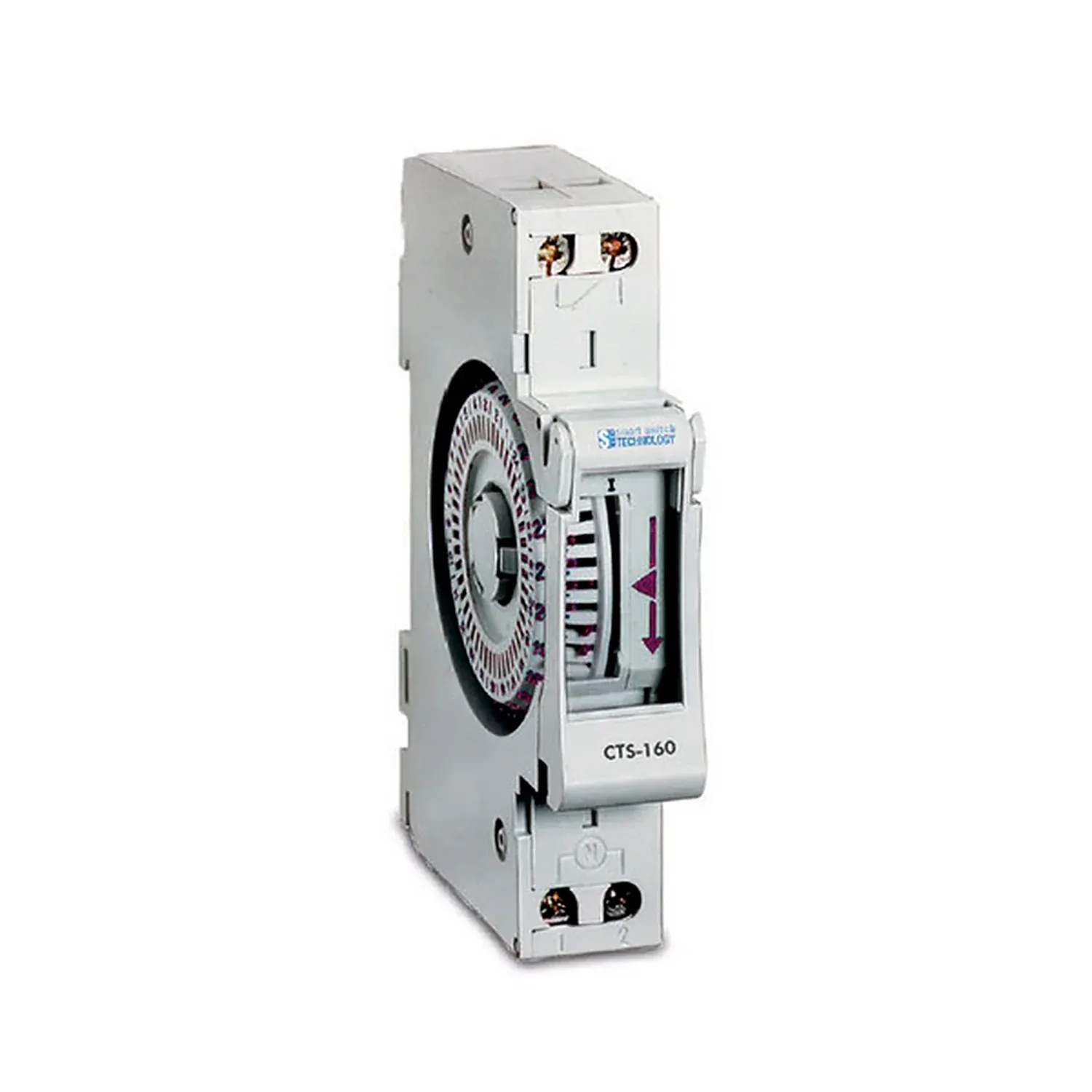

        CABAC CTS-160 | Single pole timer Din Mount 16(4)amp Analogue (No Back up Battery)
        $108.30 $98.45 ex. GST
        Video

        Learn more by watching our CABAC CTS-160 | Single pole timer Din Mount 16(4)amp Analogue (No Back up Battery) video.

        Description

        CABAC CTS-160 | 24 hour Single pole timer Din Mount 16(4)amp Analogue (No Back up Battery)

        CTS-160 Analogue DIN-Rail Time Switch with Large Screw Terminals Perfect for Stranded Conductor!

        The CTS-160 is a single module analogue time switch designed for DIN-rail mounting. The timer switch is easy to program, features large screw terminals to suit stranded conductor and has a lead-sealable housing for tamper protection.

        Suitable applications include advertising lighting, shop window lighting, water treatment and pump control.

        Features:

        • Manual Switch: Automatic mode, Fix ON
        • Channels: 1
        • Tampering Protection: Lead-sealable
        • Program: Daily program (ON/OFF)
        • Shortest Switching Time: ON/OFF 30 Minutes
        • Temperature (Operation): -20 to 55 degrees Celsius
        • Number of Modules: 1
        • Colour: Grey
        • Weight: 110g
        • Mounting: DIN Rail
        • Protection Type: IP20
        • Protection Class: II, according to corresponding mounting
        • Approval Mark: CE, GOST, VDE
        • Standards and Guidelines: EN 60730-1, EN 60730-2-7

        Power Connection

        • Device: Screw terminal with wire protection max. 4mm2, captive latching screw
        • Circuit diagram and line drawing available, refer to the product datasheet

        Electrical Data

        • Supply Voltage: DC 130V, AC 230V +/- 10% 50-60Hz
        • Current Output: Switch contact, potential-free
        • Current Capacity - Resistive Load - AC1: 16A/250V AC
        • Current Capacity - Inductive load cos.phi 0.6 - AC3: 4A/250V AC
        • Load Incandescent Bulb: 1.000W
        • Power Consumption: 1VA
        • Accuracy: +/- 2,5 Second/Day at 20 degrees Celsius

        This product has been replaced with

        (CTS-160)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU CTS-160
        Barcode # 9318674254102
        Shipping Weight 0.0940kg
        Shipping Width 0.090m
        Shipping Height 0.025m
        Shipping Length 0.085m
        Shipping Cubic 0.000191000m3
        TYPE VALUE
        Type Timer
        Brand Cabac
        Rated Current (A) 16A (AC1)
        Height (mm) 90
        Width (mm) 18
        Depth (mm) 65
        Protection IP20
        Mounting Din Rail
        Program Time 24 Hours
        Number of Modules 1
        Programming Type Analog
        Battery Backup No
        Voltage (V) 240
