        CARLO GAVAZZI DPB02CM48 | 3- Phase Phase Sequence/Loss
        $462.00 $420.00 ex. GST
        Video

        Learn more by watching our CARLO GAVAZZI DPB02CM48 | 3- Phase Phase Sequence/Loss video.

        Description

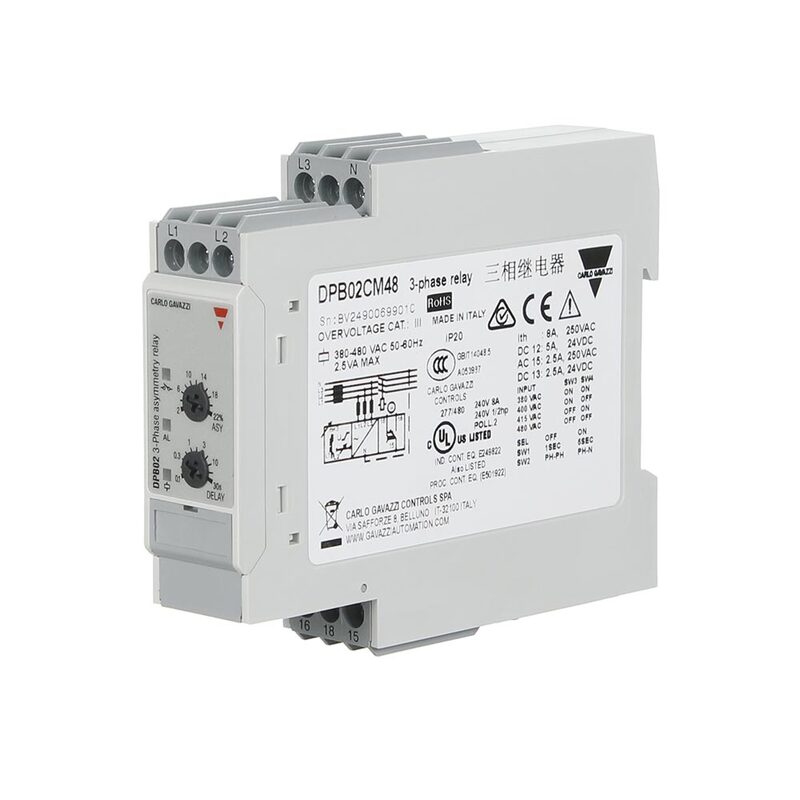

        CARLO GAVAZZI DPB02CM48 | 3- Phase Phase Sequence/Loss

        The Carlo Gavazzi DPB02CM48 monitoring relay is a three-phase monitoring relay used for phase sequence, phase loss and asymmetry with a built-in time delay function.

        The DPB02CM48 features a switch-mode power supply, which provides a wider input voltage range to cover different mains voltages while reducing heat dissipation and improving reliability and stability. The monitoring range of 380 to 480 VAC is covered by two multi-voltage relays.

        Connected with the three phases (and neutral), the DPB02CM48 operates when all three phases are present at the same time, the phase sequence is correct and the asymmetry is under the set level. The unit can be customized to each user application by adjustments to over and under voltage, alarm delays, and asymmetry.

        Features:

        • Detects when all three phases are present and in proper sequence
        • Detects if asymmetry level is below the set value
        • Measures its own power supply
        • Selection of measuring range by DIP switches
        • Adjustable asymmetry on a relative scale
        • Adjustable delay function (0.1 to 30 seconds)
        • 380 to 480 VAC power supply range
        • 8A SPDT relay output normally energized
        • 22.5mm DIN-rail housing (DIN 50022)
        • LED indication for relay, alarm and power supply ON

        (DPB02CM48)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU DPB02CM48
        Barcode # 8030956000597
        Shipping Weight 0.1380kg
        Shipping Width 0.150m
        Shipping Height 0.030m
        Shipping Length 0.110m
        Shipping Cubic 0.000495000m3
        TYPE VALUE
        Type 3- Phase Phase Sequence/Loss
        Brand NHP
        Power Supply Range 380 to 480 VAC
