Learn more by watching our CLIPSAL EY56C520 | 5 Pin 20Amp Switched Socket Outlet IP66 | Easy56 video.

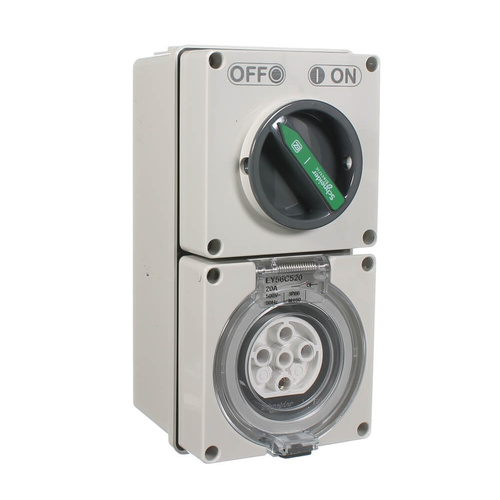

The Clipsal EY56C520 is an Easy56 switched socket outlet rated 20A at 500V AC, with a 5 pin tubular outlet in a 3P + N + E configuration. The polycarbonate body is IP66 rated conforming to AS 60529 and surface mounted, with a rotary knob switch that accepts two 8mm padlocks. The EY56C520 complies with AS/NZS 3123 and AS/NZS 3133, measuring 203 x 101 x 101mm at a net weight of 0.82kg.
Three phase plant in a shed, wash bay or yard needs an outlet that survives the environment and switches off at the point of use. Isolating that plant for maintenance requires locking the switch off, not simply disconnecting the lead. The EY56C520 addresses both requirements, because the rotary handle accepts two 8mm padlocks in the off position. IP66 protection conforming to AS 60529 then handles hose-down and dust rather than sheltered positions alone.
The Easy56 line delivers this configuration at a cost that matters when an installation requires several outlets simultaneously. The EY56C520 arrives as a complete surface-mounted station, so no separate enclosure or mechanism requires assembly on the bench. Screw terminals accepting 1 to 16mm2 then cover the cable sizes a 20A three phase circuit runs. Three threaded entries, 2 x M25 and 1 x M32, accommodate top or bottom entry without drilling the housing.
The datasheet lists protection type as without protection, so overcurrent and earth leakage protection sit upstream in the board rather than inside the outlet. The rating covers 20A at 500V AC across a 5 pin outlet, so a plug of a different pin configuration or current rating will not engage. IP66 covers dust and water jets but not immersion, and the published ambient range runs minus 25 to 75 degrees Celsius.
(EY56C520)
The Schneider Electric datasheet lists AS/NZS 3123 and AS/NZS 3133, with IP66 protection conforming to AS 60529. The outlet standard is Australian and New Zealand. Compliance of the installation itself rests with the licensed electrician on site.
Five tubular pins arranged as 3P + N + E, meaning three phases plus neutral and earth. That suits three phase plant requiring a neutral. A plug with a different pin count or current rating will not engage the outlet.
The rotary handle accepts two 8mm padlocks in the off position. That lets the outlet serve as a lockable isolation point during plant maintenance, subject to the isolation procedure applying at the site.
Screw terminals accept cable cross sections from 1 to 16mm2. The enclosure has three threaded entries, two M25 and one M32. The entry method chosen needs to preserve the IP66 seal, which the licensed installer confirms.
The datasheet lists protection type as without protection, so there is no integral circuit breaker or residual current device. Overcurrent and earth leakage protection for the circuit sit upstream in the switchboard.
A polycarbonate body in grey with brass pins and a dark grey rotary handle. The datasheet publishes an ambient air temperature range of minus 25 to 75 degrees Celsius for both operation and storage.
Schneider Electric states a contractual warranty of 18 months, running from the invoice date. The method is a Clipsal in-home warranty, so Clipsal handles the claim directly and the outlet does not need uninstalling or returning. Warranty is void where installation has not been carried out by a licensed electrician.
The Clipsal by Schneider Electric EY56C520 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | EY56C520 |
| Model # | EY56C520 |
| Barcode # | 9311554782801 |
| Package Weight | 0.920kg |
| TYPE | VALUE |
|---|---|
| Type | Industrial Outlets |
| Brand | Clipsal by Schneider Electric |
| Range | Easy56 |
| Colour | Grey |
| Rated Current (A) | 20 |
| Height (mm) | 203 |
| Width (mm) | 101 |
| Depth (mm) | 101 |
| Protection | IP66 |
| Voltage (V) | 500 |
| Number of Poles | 3P+N+E |
| Pin Number | 5 Round Pins |
| Conduit Entries | 2 x 25mm & 1 x 32mm Threaded |
| Lockable | Yes |
