        Clipsal 4RCBE416/30 | 4 Pole 16Amp 30mA RCBO | 6kA RCD/MCB
        $60.50 $55.00 ex. GST
        Video

        Learn more by watching our Clipsal 4RCBE416/30 | 4 Pole 16Amp 30mA RCBO | 6kA RCD/MCB video.

        Description

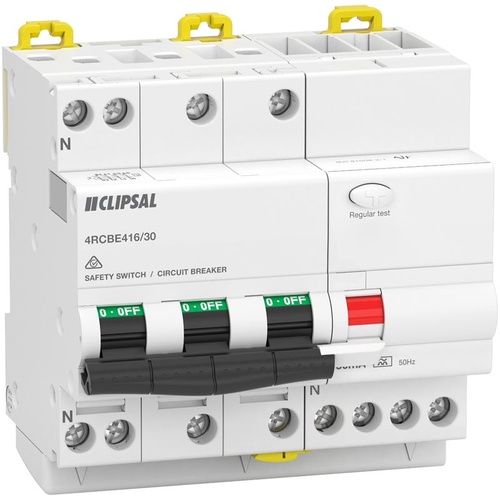

        Clipsal 4RCBE416/30 | 4 Pole 16Amp 30mA RCBO | 6kA RCD/MCB

        Clearance 3 Left - NO RETURNS

        The Clipsal 4RCBE416/30 is a three phase 3P+N RCBO. It is rated at 6kA so it is ideal for residential and commercial applications. This RCBO can be used to protect 3 phase equipment, it makes fault finding simple as it controls one circuit, should a fault occur, it will only effect the one control device leaving the rest of the operation working as normal.

        Features:

        • Full installation flexibility with the option of having line connection either from top or bottom
        • Type A earth leakage protection to provide additional safety to end user
        • Green strip on the toggle that guarantees opening of all the poles in safety conditions
        • Easy fault identification with visible red tripping flag to identify earth leakage tripping
        • Clear marking of neutral on left side

        Specifications:

        • Poles: 3P + N
        • Number of protected Poles: 3
        • Rated Current (In): 16 A
        • Curve: C Curve
        • Earth Leakage Sensitivity: 30mA
        • Earth Leakage protection Class: Type A
        • Breaking Capacity: 6 kA
        • Rated Voltage: 380...415 V AC
        • Height: 91 mm
        • Width: 90 mm
        • Depth: 78.5 mm



        This product has been replaced with

        (4RCBE416-30)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 4RCBE416-30
        Barcode # 3606489698706
        Shipping Weight 0.5580kg
        Shipping Width 0.086m
        Shipping Height 0.125m
        Shipping Length 0.112m
        Shipping Cubic 0.001204000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Resi Max
        Rated Current (A) 16
        Height (mm) 91
        Width (mm) 90
        Depth (mm) 78.5
        Standards AS/NZS 61009
        Mounting Din Rail
        Breaking Capacity 6kA
        Voltage (V) 415
        Total Number of modules 5
        Earth Leakage Sensitivity 30mA
        IP Rating IP20 ( IP40 Enclosed )
        Curve C
        Box increments (This item is sold individually) 1
        Number of Poles 3P+N
        Earth Leakage Protection Class Type A
