Clipsal by Schneider Electric | Iconic 10A Double Power Point Zigbee | Grid
The Clipsal Iconic 3025CSGZ is a Zigbee-enabled double power point rated 10A 250V AC, supplied as a grid socket for use with Clipsal Iconic skins. The 3025CSGZ integrates with the Wiser smart home ecosystem and supports remote on/off control, scheduling, and timer functions through the Wiser Room App. It complies with AS/NZS 3112 for Australian power outlets.
Standard wall power points in existing installations are often static. They cannot respond to scheduling demands, energy management, or remote switching. Installing a connected power point within an existing electrical circuit lets electricians offer smart home capability to customers without rewiring the circuit or replacing the entire outlet assembly. The 3025CSGZ integrates into the Wiser ecosystem and is compatible with Clipsal Iconic skins. Cover skins in dozens of finishes match existing switchgear throughout the house.
Licensed electricians value the Wiser-compatible 3025CSGZ as a retrofit option for customers who want smart control without rewiring. The independent outlet switching lets each socket turn on/off separately. Customers can schedule different appliances without affecting the whole circuit. Stocking is simple since the 3025CSGZ uses the same backing plate as all Clipsal Iconic outlets. The grid-only format means electricians can pair it with any Iconic skin to match the customer's décor.
Features
- Zigbee-enabled smart control — the 3025CSGZ connects to the Wiser Hub via Zigbee protocol and operates as a standard power point without the Hub if needed.
- Independent outlet control — left and right sockets can be switched on/off separately through the Wiser app, so customers can schedule different loads independently.
- Wiser app integration — supports remote on/off control, 24-hour scheduling, 1 to 24-hour timer functions, and integration with other Wiser-enabled devices.
- Dual protocol support — operates via Zigbee (default) or Bluetooth Low Energy (BLE) for flexibility in home automation setups.
- 10A rated dual outlet — supplies up to 10A per socket on a single 10A circuit, supporting simultaneous power to multiple appliances.
- Grid socket format — supplied as backing frame and grid outlet only, no skin cover included; pairs with all Clipsal Iconic skins in dozens of finishes.
- Iconic range compatibility — uses the same backing plate as all Clipsal Iconic single, double, and quad outlets, simplifying stock and skin swaps.
- Standard Australian outlet — rated for 240V AC 50Hz and complies with AS/NZS 3112, meeting all domestic wiring rules without restriction.
- Indoor use only — IP20 rating is suitable for internal walls only; not weatherproof or rated for damp, splash, or external locations.
- Touch switch operation — features a touch switch that displays power status via LED indicators and enables manual on/off control independent of Wiser app.
Where to use
- Smart home retrofits — integrate the 3025CSGZ into existing circuits when customers want app-based control and scheduling without rewiring.
- Appliance scheduling — use the independent socket switching to schedule specific appliances (water heater, pool pump, dryer) on/off during off-peak hours.
- Energy management — the 3025CSGZ timer and scheduler reduce standby power draw by automatically switching off non-essential loads.
- Rental properties and guest accommodations — provide remote control and scheduling for shared appliances without giving guests physical access to the board.
- Holiday homes and seasonal properties — use the scheduler to prevent accidental power draw while the property is unoccupied.
- Multiple-load power points — install the dual-outlet 3025CSGZ in entertainment zones, home offices, or workshops where independent appliance control is useful.
The 3025CSGZ is not suitable for outdoor walls, wet areas, or damp locations. Do not install the 3025CSGZ in bathrooms, kitchens with splash zones, laundries, external walls, or areas exposed to water, humidity, or weather. The product is rated for indoor use only.
The double PowerPoint can individually control both the left and the right sockets.

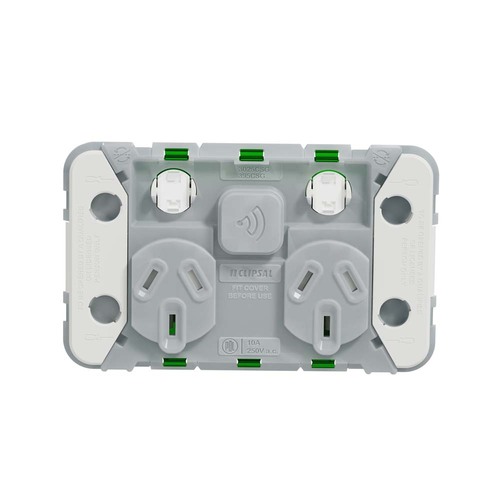

The socket comes as a grid without the Clipsal Iconic Skin
Grid Only - Please order a Vivid White skin here or Antracite skin here
