        Clipsal MX9MS3100 | MAX9 Main Switch 3P 100A
        $45.65 $41.50 ex. GST
        Video

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

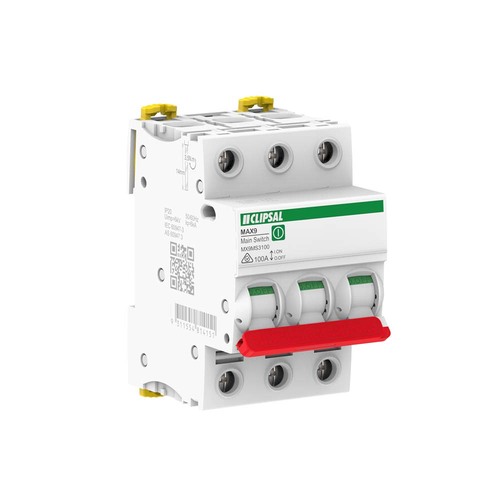

        Clipsal MX9MS3100 | MAX9 Main Switch 3P 100A

        The Clipsal MX9MS3100 MAX9 is a switch disconnector.
        This switch disconnector is used for control (opening and closing of circuits under load).
        This product is also used for the disconnection of on-load electrical circuits already protected against overload and short-circuits.

        Main Switches

        All Clipsal Main Switches incorporate high-quality internal mechanisms and come with a highly visible ON/OFF toggle, which allows for quick location when isolation of power is required in an emergency

        • Cable automatically guided to the correct position: terminals with guard.
        • Insulated terminals – IP20.
        • Manual control on front face by O-I lever.
        • The Green strip on the toggle indicates the full opening of the poles
        • Compatible with MAXBAR
        • Big terminal capacity with up to 35 mm2 flexible cable
        • Installation flexibility with the choice of line connection either from top or bottom
        • Compatible with multiple types of screw-drivers with combination head screws
        • Double locking clip for ease of installation or removal from busbar
        • It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard.
        • It is a 3P switch disconnector with 100A In rated current.
        • The MAX9 is targeted to residential for individual and collective buildings.
        • The Ue rated operational current 415VAC.
        • It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
        • The Ue operational voltage is 415VAC.
        • The Ui rated insulation voltage is 500VAC.
        • The operating frequency is 50Hz or 60Hz.
        • It can be mounted on a DIN rail for modular installation.
        • Its width is 6 pitches of 9mm.
        • The product colour is white (RAL9003).
        • The dimensions are (W) 54mm x (H) 85mm x (D) 75mm.
        • According to IEC 60947-3 standard, the degree of protection is IP20 and IP40 in the enclosure.
        • The operating temperature is -25-70 øC.
        • The storage temperature is -40-70 øC.

        (MX9MS3100)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MS3100
        Barcode # 9311554814151
        Shipping Weight 0.2400kg
        Shipping Width 0.075m
        Shipping Height 0.085m
        Shipping Length 0.054m
        Shipping Cubic 0.000344000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 100A
        Equivalent Max 4 Reference 4MSW3100
        Voltage (V) 240Vac
        Poles 3P
        Equivalent Hager Reference SBR380/SBR390
