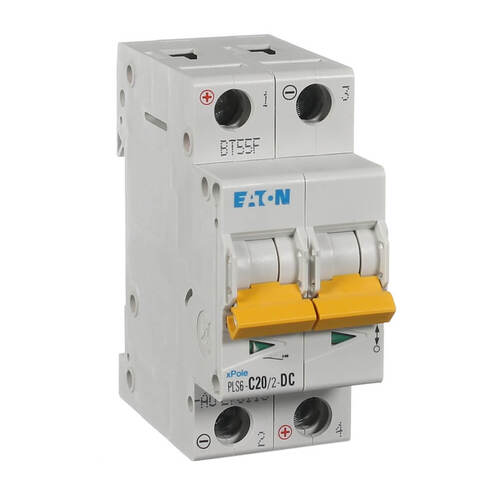

        Eaton PLS6-C20/2DC | 20 amp DC Circuit breaker 2 pole 10kA
        $47.24 $42.95 ex. GST

        Learn more by watching our Eaton PLS6-C20/2DC | 20 amp DC Circuit breaker 2 pole 10kA video.


        Circuit breaker 2 pole 20 amp 10ka DC RATED | PLS6-C20/2DC

        Clearance 13 Left

        The Eaton Moeller PLS6-C20/2DC 20a DC CB is designed to shut off power when a circuit draws more current than the rated amount on the DC circuit breaker, this shut off protects the electrical circuit and all devices using the power from damage.

        Direct current has loads of uses, (mind the pun) from charging batteries to power supplies for motors and invertors.

        10kA rating Suitable for Domestic, Industrial and Commercial applications


        • 20 Amp
        • DC Circuit breaker
        • 2 pole
        • 10kA
        • Tripping characteristic C
        • Solar Applications
        • Application Switchgear for DC applications
        • Rated switching capacity acc. to IEC/EN 60947-2 Icu : 10KA
        • Polarised - make sure the positive and negative are connected to the correct terminals.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Moeller
        SKU PLS6-C20-2DC
        Barcode # 4015082431365
        Shipping Weight 0.2420kg
        Shipping Width 0.075m
        Shipping Height 0.036m
        Shipping Length 0.086m
        Shipping Cubic 0.000232000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Eaton
        Range PLS6
        Rated Current (A) 20
        Height (mm) 81
        Width (mm) 36
        Depth (mm) 78.5
        Standards IEC/EN 60947-4
        Mounting Din Rail
        Curve C
        Voltage (V) 220 DC
        Breaking Capacity 10kA
        Number of Poles 2
