        Learn more by watching our Eaton FAZ-C20-2-DC | 20 amp DC Circuit breaker 2 pole 10kA video.

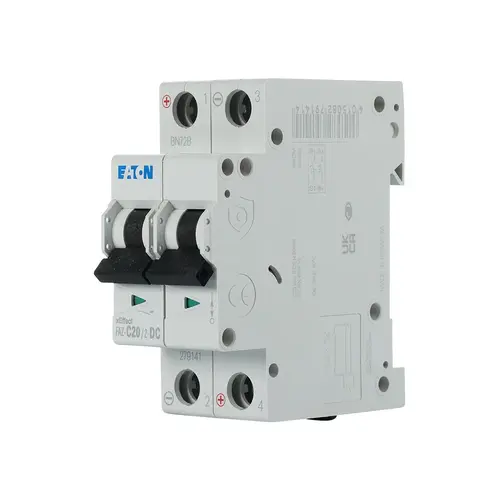

        Eaton FAZ-C20-2-DC | 20 amp DC Circuit breaker 2 pole 10kA

        The Eaton FAZ-C20-2-DC is a rugged 20-amp DC circuit breaker built for safe, efficient switching and protection in DC systems. With a two-pole design and "C" tripping characteristic, this breaker handles up to 250V DC per pole and offers a high 10kA short-circuit breaking capacity, complying with IEC/EN 60947-2 standards. Its compact size (80mm x 75.5mm x 36mm) and IP20 rating make it a secure, space-efficient choice for top-hat rail installations in control panels or industrial environments.

        The FAZ-C20-2-DC features twin-purpose terminals that work with both multi-wire (1-25mm²) and solid-core (1-25mm²) conductors, ensuring flexibility and robust connections. Additionally, its finger-safe terminals enhance safety, meeting DGUV VS3 and EN 50274 standards.

        Eaton FAZ-C20-2-DC Features:

        • Rated Current & Voltage: 20A, 250V DC per pole, suitable for various DC applications.
        • High Breaking Capacity: 10kA short-circuit breaking capacity, in line with IEC/EN 60947-2 standards.
        • Tripping Characteristic “C”: Provides reliable overload protection for general DC use.
        • Compact and Durable Design: Measures 80mm (L) x 75.5mm (H) x 36mm (W) with IP20 protection.
        • Flexible Connection Options: Twin-purpose terminals support both solid and multi-wire conductors from 1-25mm².
        • High-Temperature Range: Operates efficiently between -25°C and +75°C.

        Eaton FAZ-C20-2-DC FAQ:

        Q: What applications is this circuit breaker suitable for?
        A: The FAZ-C20-2-DC is ideal for DC applications, including control panels and industrial environments, offering a reliable 20A rating and 10kA breaking capacity.

        Q: What is the rated operational voltage per pole?
        A: The breaker is rated for 250V DC per pole, ensuring stable performance in DC applications.

        Q: Does it support multi-wire connections?
        A: Yes, it features twin-purpose terminals compatible with both solid and multi-wire conductors (1-25mm²) for flexible installation options.

        (FAZ-C20-2-DC)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Part Number FAZ-C20/2-DC
        Number of Poles 2
        Current Rating 20 A
        Voltage Type DC
        Voltage Rating (per pole) 250 V DC
        Insulation Voltage 440 V
        Impulse Withstand Voltage 4 kV
        Short-circuit Breaking Capacity 10 kA (IEC 60947-2)
        Release Characteristic C
        Mounting Method Top-hat rail (IEC/EN 60715)
        Degree of Protection IP20 / IP40 (when fitted)
        Operating Temperature -25°C to 75°C
        Dimensions (L x H x W) 80 mm x 75.5 mm x 36 mm
        Weight 0.222 kg
        Connectable Conductor 1 mm² to 25 mm² (solid/multi-wired)
        Certifications EN45545-2, IEC 61373, IEC/EN 60947-2
        Application Switchgear for DC applications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eaton
        SKU FAZ-C20-2-DC
        Barcode # 4015082791414
        Package Weight 0.240kg
        Package Width 0.090m
        Package Height 0.075m
        Package Length 0.040m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Eaton
        Rated Current (A) 20
        Mounting Din Rail
        Voltage (V) 250V DC per pole
        Number of Poles 2
        Breaking Capacity 10kA
        Curve C
        Dimensions (mm) L80mm, H75.5mm, W36mm
