        HAGER ADA916T | 16 Amp 2 Pole 6kA | 30mA RCD/MCB RCBO
        $31.84 $28.95 ex. GST
        Video

        Learn more by watching our HAGER ADA916T | 16 Amp 2 Pole 6kA | 30mA RCD/MCB RCBO video.

        Description

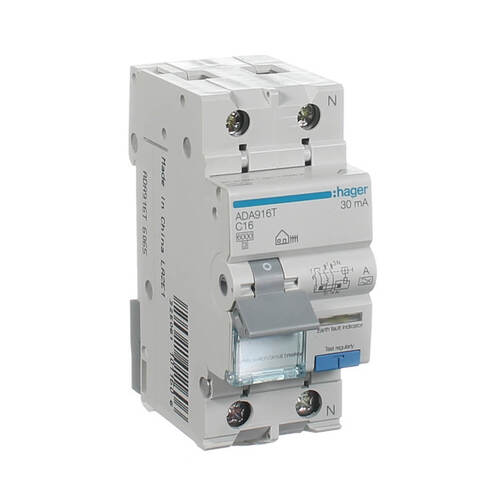

        HAGER ADA916T | 16 Amp 2 Pole 6kA | 30mA RCD/MCB RCBO

        The Hager ADA916T 16 Amp 2 pole RCBO is a C Curve safety switch all in one unit. It has a 6kA rating ideal for commercial and residential applications. The RCD/MCB combo will protect property and life should current be detected leaking to earth within 30mA. The switch has an inbuilt test switch and is easily reset after the fault is rectified.

        The ADA916T is generally installed on 1 phase circuits to protect motors, appliances and control equipment.

        Features

        • Rated current 16 A
        • Breaking Current 6 kA
        • Number of modules 2
        • Number of poles 2 P
        • Curve C
        • Rated operational AC voltage 240 V
        • Rated residual operating current 30 mA
        • Residual current type A
        • Frequency 50 Hz
        • Rated insulation voltage 500 V
        • Rated impulse withstand voltage 4000 V
        • Operating temperature -25 to 40 °C
        • Electric endurance in number of cycles 2000
        • Number of mechanical operations 2000
        • Connection cross-sect. rigid cable 1 / 25mm²
        • Connection cross-sect. flexible cable 1 / 16mm²
        • Tightening torque 2,1Nm
        • Height of installed product 83 mm
        • Width of installed product 35 mm
        • Depth of installed product 68 mm

        (ADA916T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADA916T
        Barcode # 3250611011606
        Shipping Weight 0.2360kg
        Shipping Width 0.095m
        Shipping Height 0.040m
        Shipping Length 0.081m
        Shipping Cubic 0.000308000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Range ADA
        Rated Current (A) 16
        Height (mm) 83
        Width (mm) 35
        Depth (mm) 68
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Breaking Capacity 6kA
        Voltage (V) 240
        Earth Leakage Sensitivity 30mA
        IP Rating IP20 ( IP40 Enclosed )
        Curve C
        Neutral Position Right
        Number of Poles 2
        Earth Leakage Protection Class Type A
