        HAGER MSN116 | 16Amp Single Pole 6kA C-Curve Circuit Breaker
        $4.40 $4.00 ex. GST
        Video

        Learn more by watching our HAGER MSN116 | 16Amp Single Pole 6kA C-Curve Circuit Breaker video.

        Description

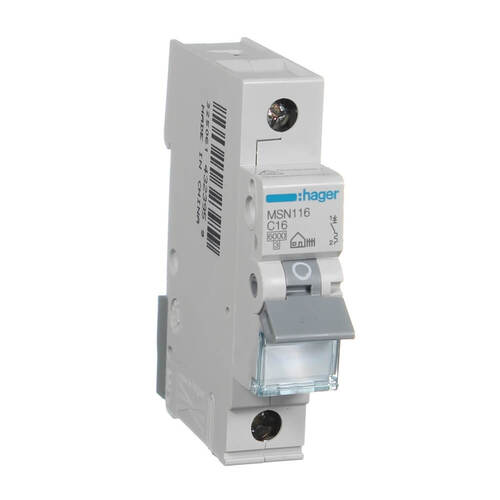

        HAGER MSN116 | 16Amp Single Pole 6kA C-Curve Circuit Breaker

        The Hager MSN116 protects and control circuits against overloads and short-circuits. The MSN116 circuit breaker is rated at 6kA and is suitable for commercial and domestic applications.

        Features

        • 16 Amp
        • Single Pole
        • 6KA
        • Circuit Breaker
        • Complies with AS/NZS 60898
        • Tripping curve - ā€˜Cā€™ magnetic setting between 5 and 10In
        • Breaking capacity: 6000A
        • Voltage rating: 240AC
        • Bi-connect allowing two connection points Connection capacity
        • 25mm2 rigid
        • 16mm2 flexible

        (MSN116)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU MSN116
        Barcode # 3250614323959
        Shipping Weight 0.0910kg
        Shipping Width 0.085m
        Shipping Height 0.017m
        Shipping Length 0.074m
        Shipping Cubic 0.000107000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 16
        Height (mm) 83
        Width (mm) 17.6
        Depth (mm) 70
        Standards AS/NZS 60898
        Mounting Din Rail
        Curve C
        Number of Poles 1
        Voltage (V) 240V
        Breaking Capacity 6kA
        IP Rating IP20 ( IP40 Enclosed )
