        HAGER MSN240 | 40Amp Double Pole 6kA Circuit Breaker
        $40.65 $36.95 ex. GST
        Video

        Learn more by watching our HAGER MSN240 | 40Amp Double Pole 6kA Circuit Breaker video.

        Description

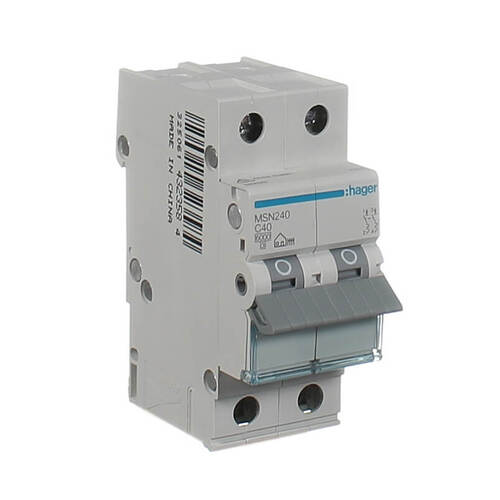

        HAGER MSN240 | 40Amp Double Pole 6kA Circuit Breaker

        The Hager MSN240 is a double pole circuit breaker which protects and control circuits against overloads and short-circuits. The MSN240 circuit breaker is rated at 6kA and is suitable for commercial and domestic applications.

        Features

        • 40 Amp
        • Double Pole
        • 6KA
        • Circuit Breaker
        • Number of modules: 2
        • Rated short circuit breaking capacity: 6 kA
        • Curve: C
        • Frequency: 50/60 Hz
        • Rated insulation voltage: 500 V
        • Operating temperature: -25 to 60 °C
        • Electric endurance in number of cycles: 4000
        • Number of mechanical operations: 20000
        • Top and bottom screw terminals connection capacity with rigid cable: 1/25 mm²
        • Top and bottom screw terminals connection capacity with flexible cable: 1/16 mm²
        • Tightening torque: 2,8Nm
        • Height of installed product: 83 mm
        • Width of installed product: 35 mm
        • Depth of installed product: 70 mm

        (MSN240)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU MSN240
        Barcode # 3250614323584
        Shipping Weight 0.2350kg
        Shipping Width 0.070m
        Shipping Height 0.035m
        Shipping Length 0.085m
        Shipping Cubic 0.000208000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 40
        Height (mm) 83
        Width (mm) 40
        Depth (mm) 70
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 400
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Curve C
