        Learn more by watching our HAGER NDN363A | 63 Amp Three Pole 10kA Circuit Breaker | D Curve video.

        Description

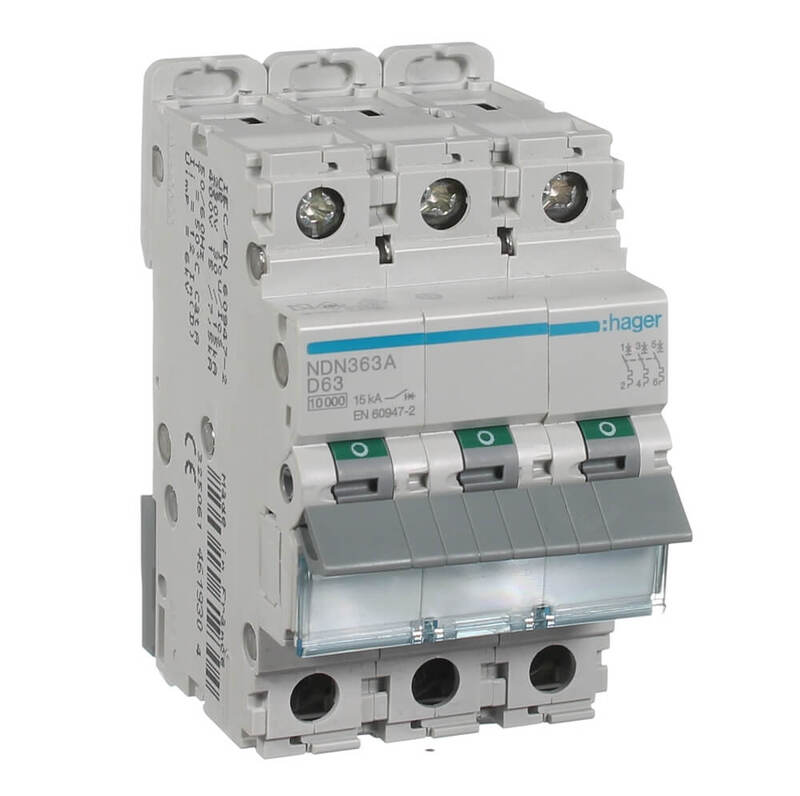

        HAGER NDN363A | 63 Amp Three Pole 10kA Circuit Breaker | D Curve

        The Hager NDN363A is a D Curve three pole circuit breaker which protects and control circuits against overloads and short-circuits. The NDN363A circuit breaker is rated at 10kA and is suitable for commercial and Industrial applications.

        Features:

        • 63 Amp
        • 3 Pole
        • 10kA
        • Curve D
        • Rated short circuit breaking capacity 10 kA
        • Frequency: 50/60 Hz
        • Rated insulation voltage: 500 V
        • Operating temperature: -25 to 60 °C
        • Electric endurance in number of cycles: 4000
        • Number of mechanical operations: 20000
        • Top and bottom screw terminals connection capacity with massive conductor: 1/35 mm²
        • Top and bottom screw terminals connection capacity with flexible cable: 1/25 mm²
        • Tightening torque: 2,8Nm
        • Height of installed product: 83 mm
        • Width of installed product: 52.5 mm
        • Depth of installed product: 70 mm

        (NDN363A)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU NDN363A
        Barcode # 3250614619304
        Package Weight 0.359kg
        Package Width 0.080m
        Package Height 0.055m
        Package Length 0.070m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 63
        Height (mm) 83
        Width (mm) 52.6
        Depth (mm) 70
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 500
        Number of Poles 3
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 10kA
        Curve D
