        HAGER SFT225 | Changeover Switch 2 Pole 25 Amp
        $71.44 $64.95 ex. GST
        Video

        Learn more by watching our HAGER SFT225 | Changeover Switch 2 Pole 25 Amp video.

        Description

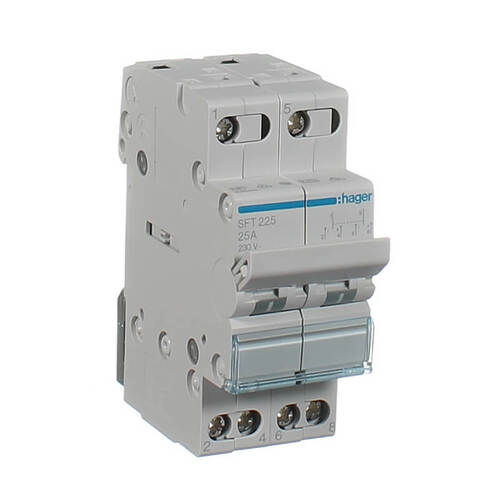

        HAGER SFT225 | Changeover Switch 2 Pole 25 Amp

        SFT225 changeover 25 amp switch.

        What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

        Features:

        • Rated current 25 A
        • 240V
        • Rated operational AC voltage 230 V
        • Frequency 50/60 Hz
        • type of connection with screw
        • Connection cross-sect. rigid cable 16mm²
        • Connection cross-sect. flexible cable 10mm²
        • Electrical durability at nominal load in AC21in
        • operating cycles 2500
        • Operating temperature -20 to 50 °C
        • Storage temperature -40 to 80 °C
        • Protection index IP 20
        • Number of modules 2

        (SFT225)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU SFT225
        Barcode # 3250615510792
        Shipping Weight 0.1460kg
        Shipping Width 0.098m
        Shipping Height 0.039m
        Shipping Length 0.079m
        Shipping Cubic 0.000302000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 25
        Height (mm) 83
        Width (mm) 35
        Depth (mm) 70
        Standards AS/NZS 60947-3
        Mounting Din Rail
        Curve C
        Number of Poles 2
        Voltage (V) 240
        Box increments (This item is sold individually) 1
        Total Number of modules 2
        IP Rating IP20 ( IP40 Enclosed )
