        Cabac - Hourly Mech Timer 3 Wire 240V 5 Amp HNS450TM
        $91.08 $82.80 ex. GST
        Video

        Learn more by watching our Cabac - Hourly Mech Timer 3 Wire 240V 5 Amp HNS450TM video.

        Description

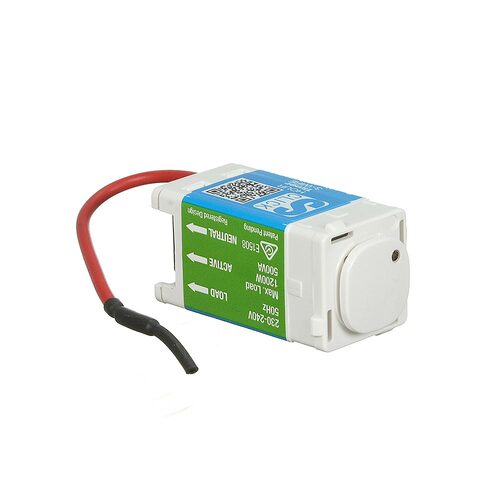

        Cabac - Hourly Mech Timer 3 Wire 240V 5 Amp HNS450TM

        The S-Click mech timer and switch range is a versatile range of products specifically designed to manage power use in the domestic environment but can also be used in commercial applications.

        The modular approach allows for flexible use of the timers and switches in a wide range of applications, whilst preserving a modern style suitable for any décor.

        Developed, Designed and Manufactured in Australia at Hendon South Australia, all units comply with Australian EMC Emission and Safety Standards requirements.

        Caution: The 2-Wire Timer switches cannot be used for fans, motors, or iron core ballasts. The switching of inductive loads requires use of the 3-Wire series.

        Suggested Applications: Small pool pumps, water features, garden and decorative lighting

        Easy to use and set:

        • Suitable for fans, motors and iron core ballasts
        • 1-24 hour time out
        • Quick tap turn on - quick tap turn off
        • Sustained press – double timeout up to 24 hour max
        • Hold to 10 second to enter program mode
        • 10 minute timeout warning
        • Amber LED

        Mech Timer Features

        • Supports timer and additional feature modes of power switching operations
        • Convenience of a timer switch and additional feature switch in one push button
        • Timer switch cuts out energy wastage due to power being left on unnecessarily
        • LED indicates device status
        • Easy user time-out period programming
        • Compatible with a wide range of HPM and Clipsal style switch plates and accessories
        • Supplied with with easy swapping HPM and Clipsal style buttons for a perfect fit
        • Retrofit compatible
        • Multiple timer units can fit onto a single plate – up to six (Note load de-rating due to temperature rise in wall box)
        • Dimensions: 51mm in length (including button)

        Mech Timer is supplied with

        • 1 x Mech Timer Switch
        • 1 x HPM style push button
        • 1 x Clipsal style push button
        • 1 x Instruction manual

        (HNS450TM)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU HNS450TM
        Barcode # 9318674090496
        Shipping Weight 0.0340kg
        Shipping Width 0.035m
        Shipping Height 0.040m
        Shipping Length 0.070m
        Shipping Cubic 0.000098000m3
        TYPE VALUE
        Type Switches
        Brand Cabac
