        Learn more by watching our Cabac - Digital 2 wire Rotary Digital Dimmer White | HNS630DT video.

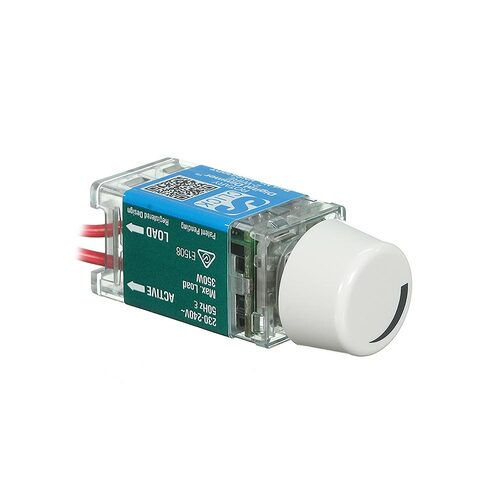

        Cabac - Digital 2 wire Rotary Digital Dimmer White HNS630DT

        S-Click Rotary Digital Dimmer for Dimmable LED Lighting
        The S-Click HNS630DT digital dimmer is simple to use and employs a familiar rotary-style dimming method. Turning the knob clockwise will brighten the lights and turning the knob anti-clockwise will decrease brightness. The wider range capability of the HNS630DT provides deep-dimming to zero on most lamps. A separate switch is required for ON/OFF control.

        This 2-wire rotary dimmer features programmable minimum brightness, patented ripple tone rejection and has the advantage of being suitable for dual switching. This makes our HNS630DT the perfect choice for dimmable LED lighting.

        Applications and Compatibility
        Suggested uses include incandescent, Dichroic 12V, CFL and most dimmable lighting. Compatible with S-Click 3-Wire Timers and Switches.

        The HNS630DT is suitable for dual switching.

        Knobs included to suit Clipsal and HPM style wall plates. Also suitable with PDL 600 Series, use our adaptor HNSPDLCONV.

        The HNS630DT is designed for indoor use. It is not rated for outdoor installation. NOT SUITABLE FOR FANS AND MOTORS.

        Operating Conditions

        • It is a Trailing Edge Dimmer with a linear response
        • Operating Voltage: 230-240Va.c. 50Hz
        • Operating Temperature: 0 to +50 degrees Celsius
        • Certified Standard: AS/NZS 60669.2.1, CISPR15
        • Maximum Load: 350W
        • Minimum Load: 1W
        • Maximum Current capacity: 1.5A
        • Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

        The HNS630DT is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person. No more than one dimmer can be connected to the same lamp. For operating instructions, important safety warnings and more information, refer to the product User Manual.



        (HNS630DT)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU HNS630DT
        Barcode # 9318674109952
        Package Weight 0.043kg
        Package Width 0.035m
        Package Height 0.040m
        Package Length 0.070m
