Learn more by watching our Clipsal Schneider R5041NL-ZW | C-Bus Saturn Zen Wall Button | White video.

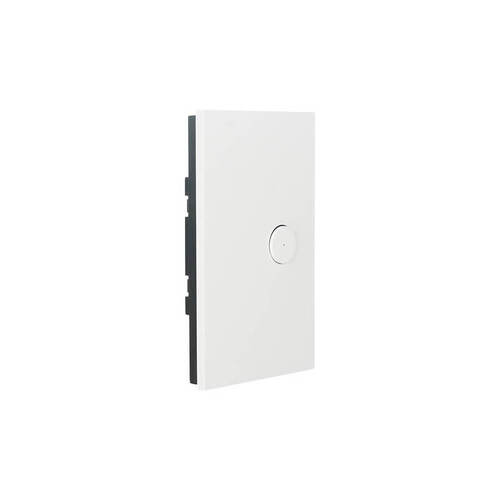

The Clipsal R5041NL-ZW is a one gang C-Bus key input unit from the Saturn Zen A Series, which sends commands onto a C-Bus network rather than switching a load directly. The R5041NL-ZW operates on 15 to 36V DC at 22mA drawn from the bus, and carries a blue and orange LED for status. It is supplied as a fascia plate, a body switch, and both a flat and a round push-button cap in Zen white.
A conventional switch performs a single function: interrupting the circuit feeding the luminaire above it. Reconfiguring what a wall plate controls therefore requires reconfiguring the wiring concealed behind it. The R5041NL-ZW instead transmits a message onto the C-Bus network, rendering the key's behaviour programmable rather than hardwired. Isolation of 3.75 kV separates the communication bus from the mains distribution.
A button configured in software rather than in copper converts a scene revision into a laptop exercise instead of a rewire. Load switching, dimming, timer, scene, roller shutter, bell push, and curtain functions all reside behind the identical key. Blue and orange LED signalling communicates status at the plate itself, and the unit terminates on a standard wall box at 84mm fixing centres.
The R5041NL-ZW is a C-Bus input unit, so it does not switch a load by itself. A C-Bus network with output units and a bus power supply must already exist, or be installed alongside it. The unit is rated 0 to 45 degrees Celsius at 10 to 95 percent relative humidity non-condensing, so it suits indoor positions only.
(R5041NL-ZW)
The R5041NL-ZW is a key input unit. Pressing it transmits a command onto the C-Bus network, and a separate C-Bus output unit switches the load. A working C-Bus network with output units and a bus power supply has to exist for the button to do anything.
Schneider lists seven switch functions for the R5041NL-ZW: load switching, dimmer, time switch function, scene control, roller shutter, bell push switch, and curtain. Which function the key performs is set in the C-Bus programming rather than in the wiring, so it can be changed later without touching the plate.
The R5041NL-ZW connects to the C-Bus network through a terminal block accepting 0.2 to 1.3mm2 conductors, and draws 15 to 36V DC at 22mA from the bus. It mounts to a standard wall box on 84mm fixing centres. Installation and C-Bus commissioning must be carried out by a licensed electrician.
The box contains a fascia plate, a body switch, and two push-button caps, one flat and one round, in Zen white. The key style is chosen at fit-off rather than at order. No C-Bus output unit, power supply, or network cable is included.
Sparky Direct stocks the two gang R5042NL-ZW and the three gang R5043NL-ZW alongside this one gang unit, all in Zen white. Gang count sets how many separate keys sit on the plate, and each key is programmed independently on the network.
The LED provides local signalling for the status of the device or scene the key controls. Blue and orange are the two states available. What each state represents in a given installation is determined by the C-Bus programming rather than fixed at the button.
Starting time is 5 seconds. The unit needs that period after the bus is energised before it responds to a press. A delay on first power-up is expected behaviour rather than a fault.
The R5041NL-ZW carries a 2 year warranty for domestic use and a 2 year warranty for commercial use, both running from the invoice date. The warranty method is Clipsal in-home warranty, so a claim is handled by Clipsal directly rather than by returning the unit.
The Clipsal by Schneider Electric R5041NL-ZW is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
The warranty starts from the Invoice Date.
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | R5041NL-ZW |
| Model # | R5041NL-ZW |
| Barcode # | 9311554763015 |
| Package Weight | 0.205kg |
| TYPE | VALUE |
|---|---|
| Type | Wall Plate |
| Brand | Clipsal by Schneider Electric |
| Colour | White |
| Height (mm) | 118 |
| Width (mm) | 75 |
| Depth (mm) | 25 |
| Mounting | Wall Box |
| Voltage (V) | 15-36 DC |
| Number of Gangs | 1 |
