        Hager ESC125 | 25Amp 1 Pole Contactor 240V
        $40.65 $36.95 ex. GST
        Video

        Learn more by watching our Hager ESC125 | 25Amp 1 Pole Contactor 240V video.

        Description

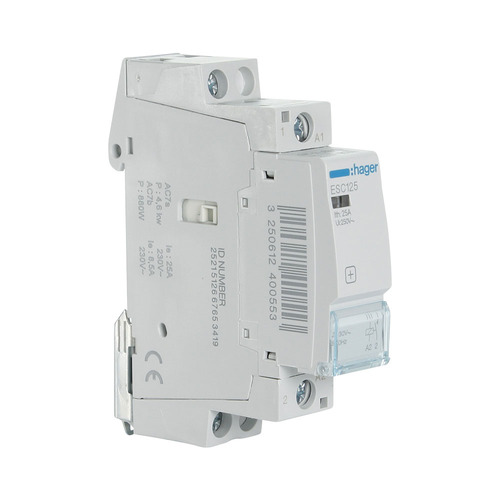

        Hager ESC125 | 25Amp 1 Pole Contactor 240V

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The Hager ESC125 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The ESC125 is a 25 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • Contactor 240v
        • 1 Pole
        • 25 Amp
        • 1 N/O Contact

        Fluorescent bulbs control

        • Max. load fluorescent lamp 950 VA
        • Max. power with fluorescent parallel lamps 810 VA
        • Fluorescent lamps in duo circuit 1990 VA

        Incandescent bulbs control

        • Max. power with incandescent lamps 1900 W

        Dimensions

        • Depth of installed product 60 mm
        • Height of installed product 83 mm
        • Width of installed product 17,85 mm

        (ESC125)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ESC125
        Barcode # 3250612400553
        Shipping Weight 0.1140kg
        Shipping Width 0.095m
        Shipping Height 0.020m
        Shipping Length 0.080m
        Shipping Cubic 0.000152000m3
        TYPE VALUE
        Type Contactor
        Brand Hager Electrical
        Rated Current (A) 25
        Height (mm) 83
        Width (mm) 17.5
        Depth (mm) 60
        Protection IP20
        Mounting Din Rail
        Number of Poles 1
        Voltage (V) 240
        Number of Modules 1
        Contact Configuration 1 x N/O
