        Learn more by watching our Hager WBMSLL | Silhouette Electronic Push Button Slave Switch Mechanism video.

        Additional related video.

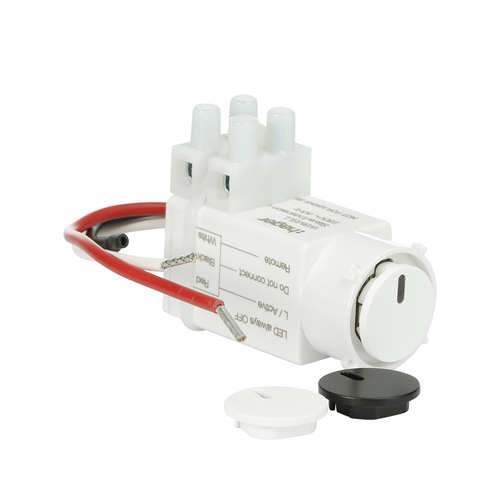

        Hager WBMSLL | Silhouette Electronic Push Button Slave Switch Mechanism

        This switch is a slave switch. This is to be used to control either another electronic switch WBME5A or an electronic dimmer switch WBMD400UPB. This switch also includes Matt White & Matt Black bezels to suit those coloured switch plates.

        The HAGER WBMSLL is an electronic slave switch mechanism that provides an additional control point for a lighting circuit, allowing for multi-way switching or dimming. It works by communicating with a master switch (like a Hager dimmer or switch) to turn a light on or off from a different location, without needing a direct connection to the light fixture itself.

        How it works

        • Slave unit: The WBMSLL itself is a slave device. It sends signals to a "master" dimmer or switch that is directly wired to the lighting circuit.
        • Master control: The master switch is the one that actually controls the power to the light.
        • Multi-way control: When a user presses the button on the slave WBMSLL, it sends a signal to the master switch, which then controls the light. This allows "2-way" or "multi-way" switching between different locations.
        • LED indicator: It features an LED indicator, which typically requires a neutral connection from the same circuit to stay on and indicate a "live" switch.

        Key features

        • Compatibility: It is designed to work with specific Hager master electronic dimmers (e.g., WBMD400UPB) or switches.
        • Function: It provides an extra push-button control point.
        • Design: It is part of the Hager Silhouette series and is available in finishes to match the compatible Silhouette plates.

        Installation and usage notes

        • The WBMSLL mechanism is not wired directly to the light; it is wired to the master switch.
        • The master device and the slave unit must be on the same phase. The optional LED indication requires a neutral connection on the same circuit as the master.

        Features:

        • White
        • 230-240V
        • 50Hz
        • Amperage Range: 5 A
        • Single Pole
        • Series: Hager Silhouette

        (WBMSLL)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU WBMSLL
        Model # WBMSLL
        Barcode # 3250617009164
        Package Weight 0.002kg
        Package Width 0.022m
        Package Height 0.022m
        Package Length 0.051m
        View Datasheet
        View Manual
        TYPE VALUE
        Brand Hager
        Colour White
        Switch Type Push Button
        Poles 1
        Operating Voltage 230-240 (V)
        Amperage Range 5 AMP
