        IPD | PVC Cable Duct Open Slot 40mm x 60mm x 2m | Grey

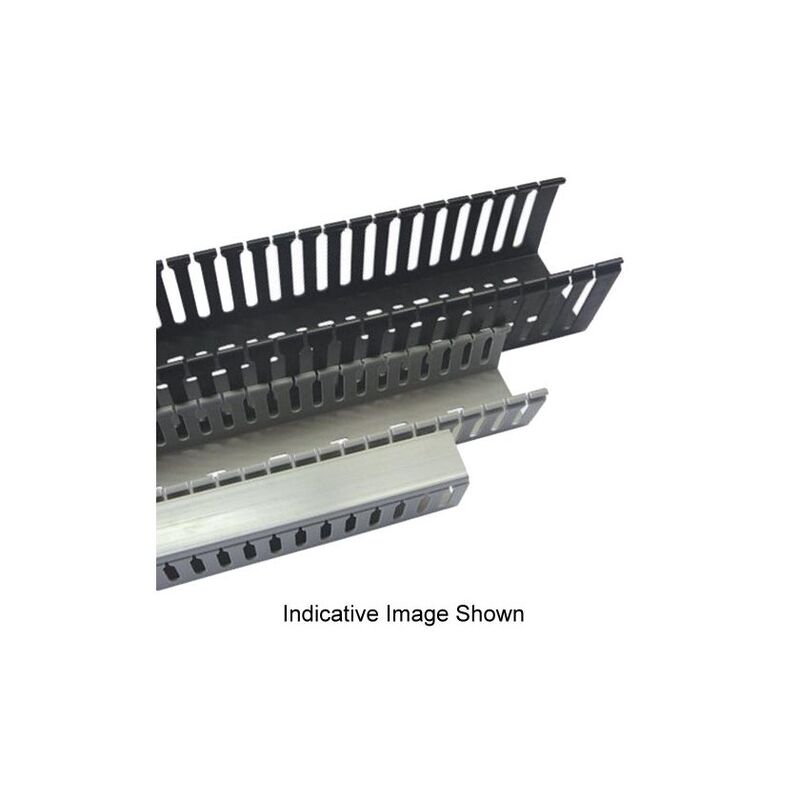

        The IPD WD4060 is a slotted PVC cable duct measuring 40mm wide by 60mm high in a 2-metre length, supplied complete with a snap-on lid. The open-slot side walls let cables branch out at any point along the run, while the lid closes the duct for a finished appearance. The WD4060 is manufactured by IPD for indoor cable management in switchboards, control panels, and equipment builds.

        Loose conductors inside a switchboard or enclosure are slow to trace and easily snagged during service work. The WD4060 routes and segregates conductors along a defined path, so an installer can position cables through the slots rather than threading them end to end. The open-slot configuration also promotes airflow around the conductor bundle, which limits heat accumulation inside a densely populated panel.

        An orderly board reads faster on the next callback and shortens fault-finding on a live installation. The pre-scored base separates to length by hand, so each length is dimensioned on site without a saw and without offcuts to clear away. Raised edges on the lid function as a cutting guide and a labelling line, which keeps circuit identification consistent across a duct run.

        Features

        • Open-slot side walls — the slotted profile lets cables enter and exit at any point along the WD4060, so conductors branch to terminals without being threaded through the ends.
        • Snap-on lid included — the WD4060 is supplied complete with a lid that clips over the base to close the duct and hide the wiring for a finished look.
        • Pre-scored base — the base snaps to length by hand along the score line, so the duct is cut to size on site without a saw or power tool.
        • Raised lid edges — the raised edges guide a blade for clean cutting and give a straight line for circuit labels along the run.
        • PVC construction — the rigid PVC body holds its shape in a board and resists the knocks of a working panel.
        • 40mm x 60mm profile — the 40mm width by 60mm depth gives room for multiple conductors while staying compact enough for tight switchboard gutters.
        • 2-metre length — each WD4060 stick runs two metres, covering most panel and bench routes with a single length.
        • Grey finish — the neutral grey blends into standard enclosures and switchboards without drawing the eye.
        • Airflow through the slots — the open slots let air move around the cables, reducing heat build-up inside a densely wired panel.
        • Interior use only — the WD4060 is made for indoor cable management and is not intended for outdoor or weather-exposed locations.

        Where to use

        • Switchboards and distribution boards — the WD4060 routes and separates conductors in the board gutter, keeping the wiring clear of breakers and terminals.
        • Control panels — the open-slot duct carries control and power wiring between components and lets each conductor exit at its terminal.
        • Test and work benches — the WD4060 tidies bench wiring so leads run along a set path instead of across the work surface.
        • Comms and data cabinets — the duct organises patch and power cabling inside a rack or cabinet for a cleaner build.
        • Machine and equipment builds — the slotted duct manages internal wiring on fabricated equipment where cables branch to multiple points.
        • Commercial and industrial fit-outs — the grey duct suits plant rooms, riser cupboards, and equipment enclosures where indoor cable runs need to stay ordered.

        The WD4060 is not rated for outdoor or weather-exposed installation and should be kept to dry indoor locations. It organises and covers cabling but is not a substitute for conduit where mechanical protection or a buried run is required.

        (WD4060)

        The WD4060 has a pre-scored base, so it snaps to length by hand along the score line. Apply gentle pressure at the score point and the duct breaks cleanly to size with no saw or power tool needed. The lid is trimmed to match.

        Yes. The WD4060 is supplied complete with a snap-on lid that clips over the base to close the duct. The raised edges on the lid guide a blade for clean cutting and give a straight line for circuit labels.

        Open-slot duct has slotted side walls, so cables can enter and exit at any point along the run and branch to terminals without being threaded through the ends. Solid-wall duct has closed sides, so cables can only leave at the ends of the length.

        The WD4060 is made for indoor cable management, such as switchboards, control panels, and equipment enclosures. It is not rated for outdoor or weather-exposed locations. For external runs, choose a weather-rated ducting or conduit product instead.

        The WD4060 measures 40mm wide by 60mm high and comes in a 2-metre length. The 40mm x 60mm profile gives room for multiple conductors while staying compact enough for tight switchboard gutters and panel gutters.

        Yes. IPD supplies a lid-only length to suit the 40mm width, sold as the IPD LID40 (2-metre grey lid). This is useful if a lid is damaged or if extra lids are needed for a run assembled from multiple sticks.

        The WD4060 carries a 1-year warranty for both domestic and commercial use, starting from the invoice date. Warranty is handled on a return-to-Sparky-Direct basis. Products must be installed by a licensed electrician for the warranty to remain valid.

        The IPD WD4060 is available for click-and-collect from Sparky Direct. This product is PICKUP ONLY from 15 Alta Road, Caboolture, QLD 4510. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return To Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand IPD
        SKU WD4060
        Model # WD4060
        Barcode # 39131712
        Package Weight 1.200kg
        TYPE VALUE
        Type Cable Duct, Open Slot
        Brand IPD
        Colour Grey
        Height (mm) 60
        Width (mm) 40
        Length (mm) 2000
        Material PVC
