Learn more by watching our Major Tech MT24 | 1000V AC/DC Compact Multimeter video.
Additional related video.
Description:

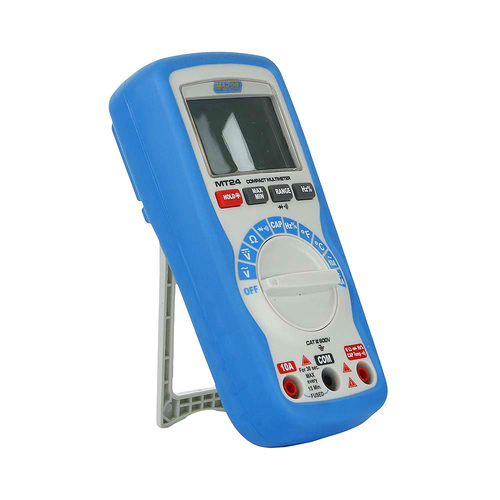

The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.
Features:
(MT24)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 600.0mV – 1000V | 0.1mV | ±(1.2% + 2 Digits) |
AC Voltage | 6.000V – 1000V | 0.1mV | ±(1.5% + 3 Digits) |
DC Current | 6A – 10A | 1mA | ±(2.5% + 5 Digits) |
AC Current | 6A – 10A | 1mA | ±(3.0% + 5 Digits) |
Duty Cycle | 0.1 to 99.90% | 0.001 | ±(1.2% + 2 Digits) |
Resistance | 600.0Ω – 60.00MΩ | 0.1Ω | ±(1.2% + 2 Digits |
Frequency | 9.999Hz – 10MHz | 0.001Hz | ±(1.2% + 3 Digits) |
Capacitance | 40.00nF – 4000μF | 10pF | ±(3.0% + 5 Digits) |
Temperature | -20°C to 760°C | 1°C | ±(3.0% + 5°C) |
AC Bandwidth | 50Hz to 60Hz | ||
Digital Display | 6000 | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Overrange Indication | Yes | ||
Input Impedance | 7.8MΩ VDC & 7.8MΩ VAC | ||
Min Max | Yes | ||
Data Hold | Yes | ||
Enclosure | Double moulded | ||
Low Battery Indication | Yes | ||
Battery | 9V | ||
Weight | 255g | ||
Dimensions | 150 x 70 x 48mm | ||
Safety Specs | IEC61010-1 CAT III 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT24 |
Barcode # | 6008229002236 |
Package Weight | 0.483kg |
Package Width | 0.070m |
Package Height | 0.210m |
Package Length | 0.120m |
TYPE | VALUE |
---|---|
Type | Compact Multimeter |
Brand | Major Tech |
Height (mm) | 48 |
Width (mm) | 70 |
Length (mm) | 150 |
