    Video

    Learn more by watching our Major Tech MT994 | Process Calibrator video.

    Description

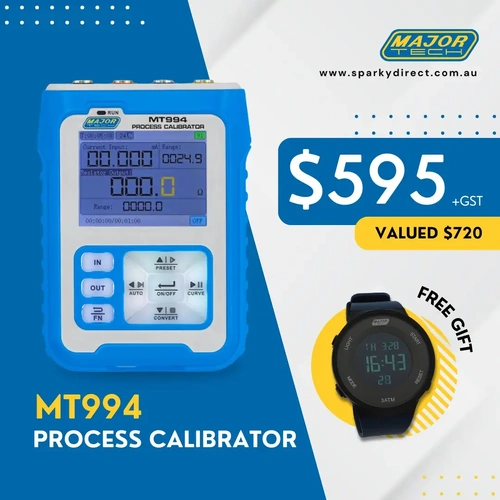

    Major Tech MT994 | Process Calibrator

    The Major Tech MT994 is a high-precision process calibrator and signal generator designed for industrial testing applications. Whether you're working with PLCs, process instrumentation, or valve testing, this compact calibrator ensures reliable measurement and sourcing of voltage, current, resistance, thermocouples, and frequency.

    With dual independent channels, the MT994 allows simultaneous measurement and signal generation, making diagnostics more efficient. The real-time curve display helps monitor signal variations, while the PWM output function enables frequency and duty cycle adjustments. It runs on a rechargeable 3000mAh lithium battery, offering up to 26 hours of standby time. Compact and lightweight, this calibrator is built for field use in demanding environments.

    Major Tech MT994 Features:

    • Dual-channel operation – Measures and sources volts, mA, RTDs, and thermocouples simultaneously.
    • Real-time curve display – Tracks signal variations for better diagnostics.
    • PWM output function – Supports frequency adjustments up to 9999Hz.
    • High-precision testing – Voltage (0-24V), current (0-24mA), and resistance (0-390Ω).
    • Thermocouple & RTD compatibility – Supports Pt100, Cu50, and 10 thermocouple types.
    • 2.4” TFT LCD with backlight – Provides clear readings in various lighting conditions.
    • Long battery life – 3000mAh lithium battery offers up to 26 hours of standby time.
    • Compact & portable – Pocket-sized for easy transport and field applications.

    MT994 FAQ:

    Q: What signals can the MT994 measure and source?
    A: It supports voltage (0-24V), current (0-24mA), resistance (0-390Ω), frequency (0-9999Hz), and thermocouples.

    Q: Does it provide real-time monitoring?
    A: Yes, the real-time curve display tracks voltage and current changes for accurate diagnostics.

    Q: How long does the battery last?
    A: The 3000mAh lithium battery provides up to 26 hours of standby time and 8-10 hours of continuous use at 20mA output.

    (MT994)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

    How to Lodge a Warranty Claim

    To initiate a warranty claim:

    1. Return to Sparky Direct
      Ship the meter back to Sparky Direct along with:

      • A copy of your proof of purchase
      • A brief description of the issue
      • Your contact details

      Please ensure the unit is securely packaged to prevent damage in transit.

    2. Forwarded for Assessment
      Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

    Assessment Process

    Major Tech’s service lab will assess the returned unit to determine:

    • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
    • If the issue is the result of user error or no fault is found.

    Outcomes

    • If approved under warranty: The product will be repaired or replaced at no cost to you.
    • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

    Important Notes

    As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

    Please allow up to 7-14 working days for the return of your product.

    Features
    Function Range Precision Resolution
    Active Current Output 0 to 24mA ±(0.02%+0.003) 0.001mA
    Voltage Output 0 to 24V ±(0.02%+0.003) 0.001V
    24V Loop 0 to 24mA ±(0.02%+0.003) 0.001mA
    Frequency Output (PWM) 0 to 9999Hz ±(2%) 5 digits
    Milli-voltage -10 to 100mV ±(0.03%+0.03) 0.01mA
    Thermocouple (TC-K) 0 to 1320°C ±(0.2%+1) 1°C
    Thermocouple (TC-S) 0 to 1760°C ±(0.2%+1) 1°C
    Resistance Measurement 0 to 390Ω ±(0.2%+1) 0.1Ω
    RTD (PT100) -200 to 650°C ±(0.5%+1) 0.1°C
    RTD (CU50) -20 to 150°C ±(0.5%+1) 0.1°C
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Major Tech
    SKU MT994
    Barcode # 6008229040986
    Package Weight 0.476kg
    Package Width 0.150m
    Package Height 0.093m
    Package Length 0.155m
    TYPE VALUE
    Type Earth/Loop/PSC Testers
    Brand Major Tech
    Output Voltage 0 - 24V
    Battery 3000mAh Rechargable
    Output Current 0 - 24mA
    Thermocouple 0 - 2320°C
