Learn more by watching our Major Tech MT775 | 1000A AC/DC True RMS Clamp Meter video.
Additional related video.
Description:

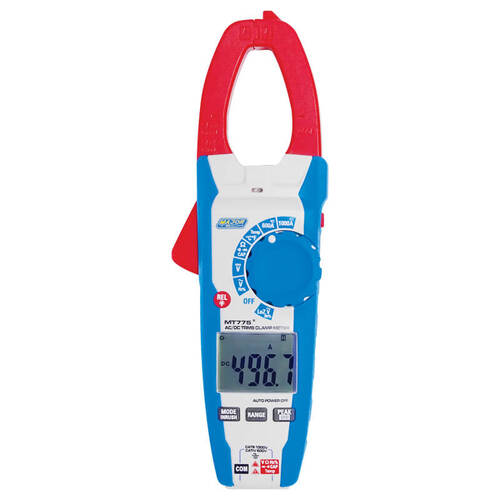

The MT775 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features include Relative mode for DCA and Capacitance Zero and offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
(MT775)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Current | 600.00A – 1000.0A | 10mA | ±(2.5% + 5 Digits) |
AC Current | 600.00A – 1000.0A | 10mA | ±(2.5% + 8 Digits) |
DC Voltage | 6.000V – 1000V | 1mV | ±(1.5% + 2 Digits) |
AC Voltage | 6.000V – 1000V | 1mV | ±(1.5% + 5 Digits) |
Resistance | 600.0Ω – 60.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
Frequency | 9.999Hz – 99.99kHz | 0.01Hz | ±(1.2% + 5 Digits) |
Capacitance | 60.00nF – 100.0mF | 0.01nF | ±(3.0% + 5 Digits) |
Temperature | -20 to 1000°C | 0.1°C | ±(5.0% + 3°C Digits) |
Duty Cycle | 10.0% to 90.0% | 0.001 | ±(1.2% + 10 Digits) |
True RMS Measurements | ACV, ACA | ||
AC Bandwidth | 50 – 400Hz | ||
Digital Display | 6000 | ||
Non-Contact Voltage (NCV) | Yes | ||
Overrange Indication | Yes | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Jaw Size | 33mm | ||
Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
Low Frequency Input | Yes | ||
Min Max | Yes | ||
Peak Hold | Yes | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | Double injection moulding | ||
Low Battery Indication | Yes | ||
Batteries | 3 x AAA | ||
Weight | 350g | ||
Dimensions | 250 x 78 x 40mm | ||
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT775 |
Barcode # | 6008229003950 |
Package Weight | 0.666kg |
Package Width | 0.060m |
Package Height | 0.723m |
Package Length | 0.120m |
TYPE | VALUE |
---|---|
Type | AC Clamp Meter |
Brand | Major Tech |
Height (mm) | 40 |
Width (mm) | 78 |
Length (mm) | 250 |
Batteries | 3 x AAA |
Safety Specs | IEC61010-1 CAT IV 600V |
