Learn more by watching our Major Tech MT745 | 3000A AC True RMS Clamp Meter video.
Additional related video.
Description:

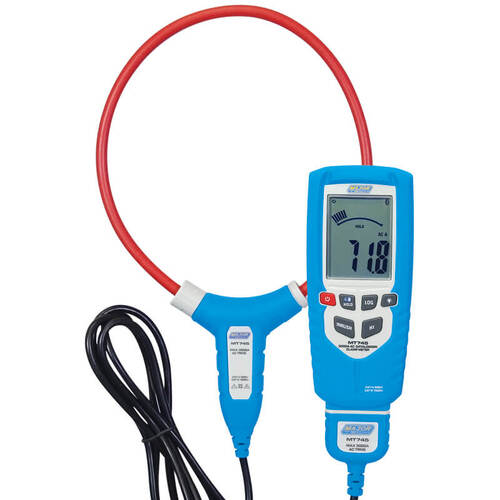

The MT745 3000A AC Flexible Current Clamp Meter with Data Logging is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can be used to perform live recordings or to transfer recorded data to a smart phone app. Using the Log Key will start a recording that will be stored on the instrument. The smart phone app allows the user to retrieve Data as well as set up recording sample rate. The unit features inrush current measurement as well as frequency measurement and has a large backlit LCD display making it easier to read measurements.
Features:
(MT745)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
AC Current | 0.5 to 3000A | 0.01A | ±(3.0% + 5 Digits) |
Frequency | 50Hz – 400Hz | 0.1A | ±(3.0% + 5 Digits) |
True RMS Measurements | ACA | ||
AC Bandwidth | 50 to 400Hz | ||
Digital Display | 3000 | ||
Bargraph | Yes | ||
Data Logging | Yes | ||
Overrange Indication | Yes | ||
Jaw Size | 150mm Flexi Clamp | ||
Min Max | Yes | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | Moulded case | ||
Low Battery Indication | Yes | ||
Batteries | 2 x AAA | ||
Weight | 315g | ||
Dimensions | 230 x 76 x 40mm | ||
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT745 |
Barcode # | 6008229030024 |
TYPE | VALUE |
---|---|
Type | AC Clamp Meter |
Brand | Major Tech |
Height (mm) | 40 |
Width (mm) | 76 |
Length (mm) | 230 |
Safety Specs | IEC61010-1 CAT IV 600V |
Jaw Size | 150mm Flexi Clamp |
Digital Display | 3000 |
