Learn more by watching our Major Tech MT874 | 600V AC/DC True RMS Multimeter video.
Additional related video.
Description:

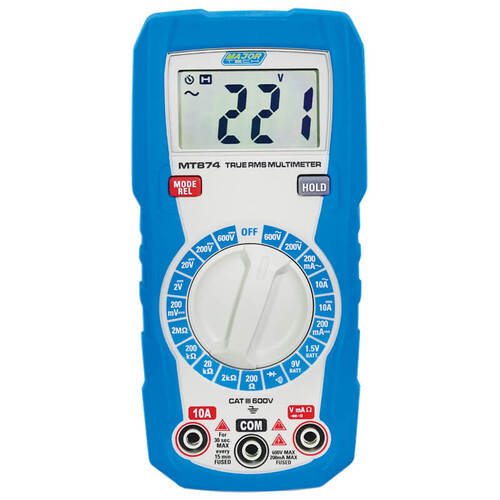

The MT874 is a durable and attractive compact True RMS multimeter with a high contrast LCD display with detailed display icons. Equipped with 7 measuring functions and 20 ranges, each test position is quickly and easily selected with a simple turn of the selector switch. The meter has a double moulded rubber housing and has IEC 61010-1 CAT III 600V safety rating. The sturdy structure is designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off. This meter is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.
Features:
(MT874)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 200mV – 600V | 1V | ±(0.5% + 5 Digits) |
AC Voltage | 200V – 600V | 1V | ±(1.2% + 10 Digits) |
DC Current | 200mA – 10A | 0.01A | ±(2.0% + 5 Digits) |
AC Current | 200mA – 10A | 0.01A | ±(2.0% + 5 Digits) |
Resistance | 200Ω – 2MΩ | 0.001MΩ | ±(0.8% + 5 Digits) |
True RMS Measurements | Yes | ||
AC Bandwidth | 50Hz to 1kHz | ||
Digital Display | 2000 | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Battery Test | 9V and 1.5V | ||
Data Hold | Yes | ||
Enclosure | Double moulded rubber housing | ||
Low Battery Indication | Yes | ||
Batteries | 2 x AAA | ||
Weight | 221g | ||
Dimensions | 154 x 74 x 43mm | ||
Safety Specs | IEC61010-D3:D831 CAT III 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT874 |
Barcode # | 6008229034206 |
Package Weight | 0.420kg |
Package Width | 0.080m |
Package Height | 0.255m |
Package Length | 0.155m |
TYPE | VALUE |
---|---|
Type | Multimeter |
Brand | Major Tech |
Voltage (V) | 600 |
Batteries | 2 x AAA |
Safety Specs | IEC61010-D3:D831 CAT III 600V |
Dimensions (mm) | 154 x 74 x 43mm |
