Learn more by watching our Major Tech MTi11 | Compact Thermal Imager video.
Description:

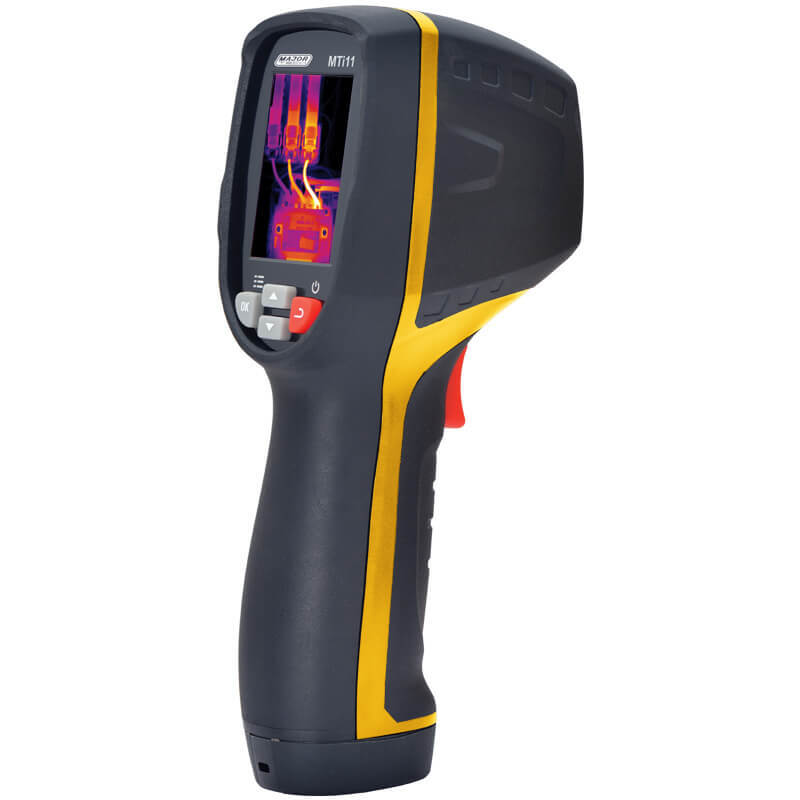

For quick and accurate thermal diagnostics, the MTi11 is a must have for every electrician. With an 80×80 pix 50Hz thermal detector, this compact thermal camera is ideal for beginners. It is focus free and makes detecting hot spots quick and easy. The Bluetooth functionality allows the user to transfer thermal information to a smart device while still in the plant and a PDF report can be sent via email immediately eliminating costly downtime. It features adjustable emissivity, temperature ranges from -20°C to 380°C, centre spot temperature as well as Hot and Cold spot markers.
Features:
Accessories:
(MTi11)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range |
Imaging and Optical Data | |
Field of View | 21° x 21° |
Spatial Resolution (IFOV) | 4.53mrad |
Thermal Sensitivity/NETD | <0.1°C @ +30°C |
Image Range | 50Hz |
Focus Mode | Focus Free |
Focal Length | 7.5mm |
Focal Plane Array (FPA) / Spectral Range | Uncooled microbolometer / 8-14μm |
IR Resolution | 80 x 80 |
Image Presentation | |
Display | 2 Colour TFT LCD Screen 240x 320 Pixels |
Image Modes | IR Image, Visual image, Image Fusion |
Colour Pallets | Iron, rainbow, grey, grey inverted |
Measurement | |
Temperature Range | -20°C to 380°C |
Temperature Accuracy | ± (2°C or ± 2%) |
Measurement Analysis | |
Spot | Centre spot |
Automatic Hot/Cold detection | Auto hot or cold markers |
Emissivity Correction | Variable 0.01 to 1.0 |
Measurement Corrections | Emissivity, reflected temperature |
Storage | |
Images Format | Bitmap (.bmp) with 6400 points |
Interfaces | Bluetooth BLE4.0 |
Enclosure | Over Moulded casing |
Input System | DC5V |
Power Source | 3.7V 1300mAH Lithium ion,>6 hours operating time |
Charging System | DC 5V 1A USB Charger |
Weight | 260g |
Dimensions | 175 x 58 x 70mm |
Safety Specs | EN61010-1 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTi11 |
Barcode # | 6008229030758 |
Package Weight | 1.000kg |
Package Width | 0.200m |
Package Height | 0.300m |
Package Length | 0.200m |
TYPE | VALUE |
---|---|
Type | Thermometer |
Brand | Major Tech |
Dimensions | 175 x 58 x 70mm |
Temperature Range | -20°C to 380°C |
