        Learn more by watching our Major Tech MT-1010 | 200kHz Handheld Mini Oscilloscope video.

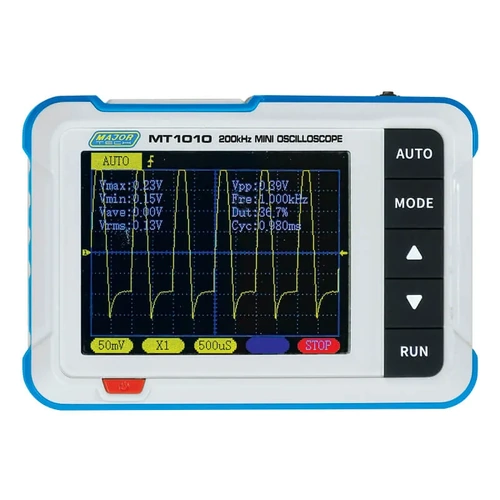

        Major Tech MT-1010 | 200kHz Handheld Mini Oscilloscope

        The Major Tech MT-1010 is a compact and budget-friendly handheld oscilloscope designed for maintenance, education, and research applications. With a 2.5MS/s real-time sampling rate and a 200kHz bandwidth, it provides reliable signal analysis for both periodic analogue and non-periodic digital signals. It can measure voltages up to ±400V with an optional 100:1 oscilloscope probe, making it versatile for a range of testing needs.

        The high-definition 2.8-inch LCD display with a 320x240 resolution ensures clear waveform visualization. The oscilloscope supports automatic, normal, and single trigger modes, along with a ZOOM time base for easy digital protocol analysis. It also features a DDS signal generator with 14 waveform types. Powered by a 1000mAh rechargeable lithium battery, it offers up to 4 hours of continuous operation on a full charge.

        Major Tech MT-1010 Features

        • 200kHz Bandwidth & 2.5MS/s Sampling Rate – Delivers accurate waveform analysis.
        • Compact & Lightweight Design – Ultra-slim with a 99 x 68.3 x 19.5mm form factor, weighing only 100g.
        • Multi-Mode Triggering – Supports automatic, normal, and single trigger modes.
        • 2.8” High-Definition LCD – 320x240 resolution for clear waveform display.
        • Voltage Measurement up to ±400V – Compatible with an optional 100:1 probe.
        • DDS Signal Generator – Includes 14 function signal waveforms for testing applications.
        • Rechargeable 1000mAh Lithium Battery – Provides up to 4 hours of continuous use.

        MT-1010 FAQ

        Q: What is the maximum voltage this oscilloscope can measure?
        A: It can measure up to ±400V when using an optional 100:1 oscilloscope probe.

        Q: How long does the battery last on a full charge?
        A: The built-in 1000mAh lithium battery provides up to 4 hours of continuous operation.

        Q: What display does the oscilloscope have?
        A: It features a 2.8-inch high-definition LCD with a resolution of 320x240 pixels.

        (MT-1010)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Function Range
        Sampling Rate 2.5MS/s
        Bandwidth 200kHz
        Vertical Sensitivity 10mV/Div - 20V/Div (progress according to the 1-2-5 way)
        Time Base Range 10μs/Div - 50s/Div (progress according to the 1-2-5 way)
        Voltage Range X1: ±40V (VPP: 80V)
        X10: ±400V (VPP: 800V) (Optional Probe)
        Trigger Methods Auto, Normal, Single
        Coupling Method AC/DC
        Display 2.8" / PPI: 320x240
        Lithium Battery Capacity 1000mAh (Rechargeable)
        Square Wave Calibration 1K Frequency / 50% Duty Cycle
        Dimensions 99 x 68.3 x 19.5mm
        Weight 100g

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT-1010
        Barcode # 6008229041037
        Package Weight 0.159kg
        Package Width 0.088m
        Package Height 0.040m
        Package Length 0.148m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Oscilloscope
        Brand Major Tech
        Display Size 2.8"
        Dimensions 99 x 68.3 x 16.5mm
        Weight 100g
        Voltage Range 40-400V
        Sampling Rate 2.5MS/s
        Bandwidth 200kHz
        Trigger Method Auto / Normal / Single
        Coupling Method AC/DC
