        Matelec FSW-12207-L | Sunset Switch With Sensor Extension LR50
        $30.25 $27.50 ex. GST
        Video

        Learn more by watching our Matelec FSW-12207-L | Sunset Switch With Sensor Extension LR50 video.

        Description

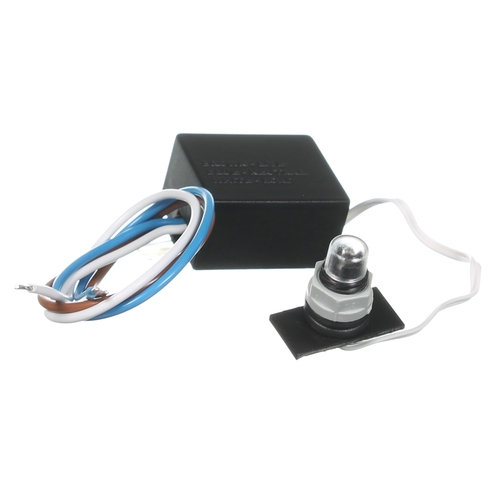

        Matelec FSW-12207-L | Sunset Switch With Sensor Extension LR50

        The Matelec FSW-12207-L weatherproof sunset switch with sensor extension is used to switch outdoors lights (or indoors light when applicable) off when they are not required in daylight. In its most basic form, the unit senses outdoors light level and switches a relay on and off, thus turning the lights wired to it on or off.
        The FSW-12207-L has a uniquely designed 160mm sensor extension range. The extension allows the sensor to be used in light fittings or enclosures were space is an issue, offering maximum flexibility to lighting control.

        If you are looking for a sunset switch that can provide maximum benefits with a minimum cost, the Matelec FSW-12207-L with sensor extension is the perfect solution.

        Product Features

        • Unique N/C ‘fail on’ circuitry Compact design
        • Ideal for tight applications
        • Designed for recess mounting, eg - Inside light fittings
        • 1 year warranty

        Specifications

        • Weatherproof rating: IP54
        • Switch rating: 10 Amps Voltage rating: 200 - 250V
        • Frequency: 50Hz
        • Rated current: Resistive - 10 Amps Inductive - 4 Amps
        • Switching cycles on resistive load: 200 000
        • Volt drop after 1000c at 1800VA load: 100mV
        • Light intensity for switch ON: 60 Lux
        • Light intensity for switch OFF: 90
        • Lux Cut out hole: 9.5mm

        This product has been replaced with

        (FSW-12207-L)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FSW-12207-L
        Barcode # 9338999002257
        Shipping Weight 0.0510kg
        Shipping Width 0.050m
        Shipping Height 0.035m
        Shipping Length 0.065m
        Shipping Cubic 0.000114000m3
        TYPE VALUE
        Type Lighting
        Brand Matelec
        Range Sunset Switch
        Colour Black Body / Clear Lense
        Rated Current (A) Resistive 10 Amp / Inductive 4 Amp
        Protection IP54
        Volt drop after 1000c at 1800VA load < 100mV
        Extension Length (mm) 160
        Safety Unique N/C 'Fail On' Circuitry
        Sensor Thread Length (mm) 20
        Body Depth (mm) 21
        Body Length (mm) 44
        Body Width (mm) 33
        Cut Out (mm) 9.5
        Light intensity for switch OFF (Lux) 90
        Light intensity for switch ON (Lux) 60
        Switching cycles on resistive load > 200,000
        Frequency (Hz) 50
        Voltage (V) 200-250v
