        Matelec FSW-12207 | Sunset Switch Day / Night LR50
        $24.20 $22.00 ex. GST
        Description

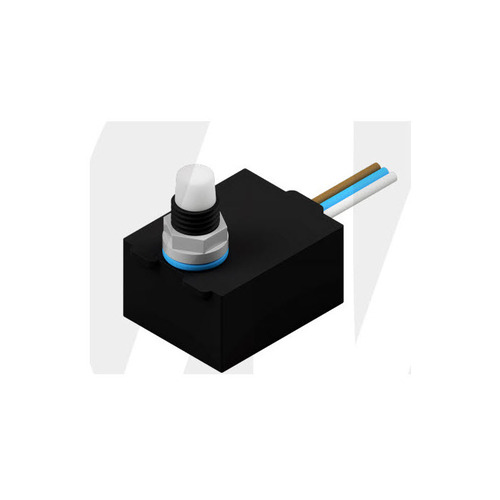

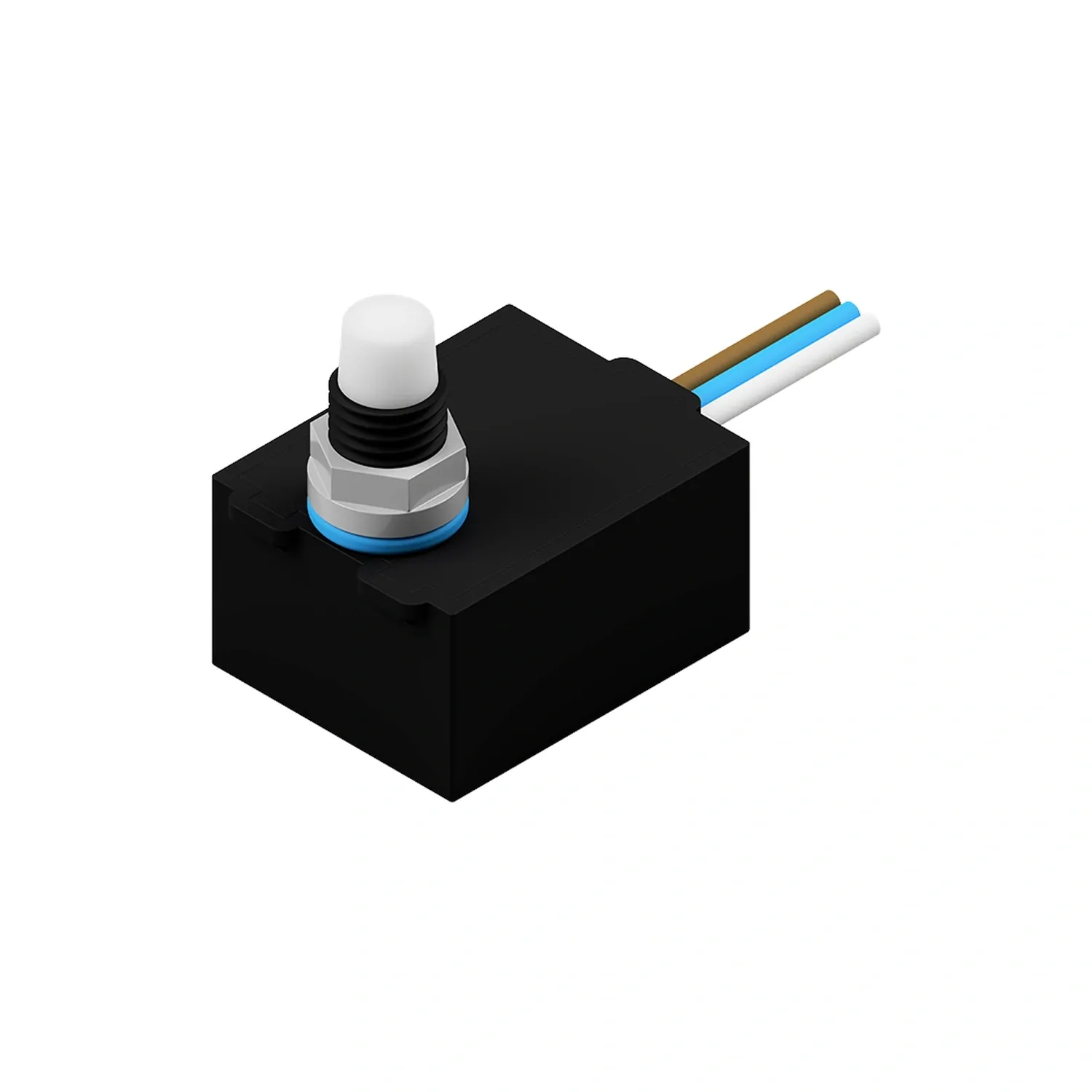

        Matelec FSW-12207 | Sunset Switch Day / Night LR50

        The Matelec FSW-12207 weatherproof sunset switch is used to switch outdoors lights (or indoors light when applicable) off when they are not required in daylight. In its most basic form, the unit senses outdoors light level and switches a relay on and off, thus turning the lights wired to it on or off.

        If you are looking for a sunset switch that can provide maximum benefits with a minimum cost, the Matelec FSW-12207 is the perfect solution.

        Product Features

        • Unique N/C ‘fail on’ circuitry Compact design
        • Designed for recess mounting, eg - Inside light fittings
        • 5 year warranty

        Specifications

        • Weatherproof rating: IP54
        • Switch rating: 10 Amps Voltage rating: 200 - 250V
        • Frequency: 50Hz
        • Rated current: Resistive - 10 Amps Inductive - 4 Amps
        • Switching cycles on resistive load: 200 000
        • Volt drop after 1000c at 1800VA load: 100mV
        • Light intensity for switch ON: 60 Lux
        • Light intensity for switch OFF: 90
        • Lux Cut out hole: 9.5mm

        (FSW-12207)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FSW-12207
        Barcode # 9338999002240
        Shipping Weight 0.0470kg
        Shipping Width 0.055m
        Shipping Height 0.050m
        Shipping Length 0.060m
        Shipping Cubic 0.000165000m3
        TYPE VALUE
        Type Lighting
        Brand Matelec
        Range Sunset Switch
        Colour Black Body / Clear Lense
        Rated Current (A) Resistive 10 Amp / Inductive 4 Amp
        Protection IP54
        Volt drop after 1000c at 1800VA load < 100mV
        Safety Unique N/C 'Fail On' Circuitry
        Sensor Thread Length (mm) 20
        Body Depth (mm) 21
        Body Length (mm) 44
        Body Width (mm) 33
        Cut Out (mm) 9.5
        Light intensity for switch OFF (Lux) 90
        Light intensity for switch ON (Lux) 60
        Switching cycles on resistive load > 200,000
        Frequency (Hz) 50
        Voltage (V) 200-250v
