        NLS 30294 | Heavy Duty 13 Hole 350Amp 500v Active Link
        $25.36 $23.05 ex. GST
        Video

        Learn more by watching our NLS 30294 | Heavy Duty 13 Hole 350Amp 500v Active Link video.

        Description

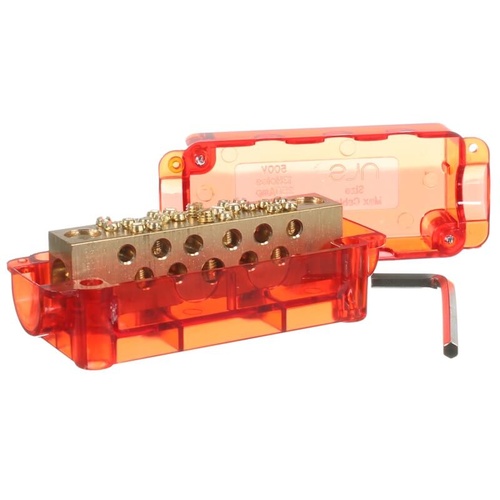

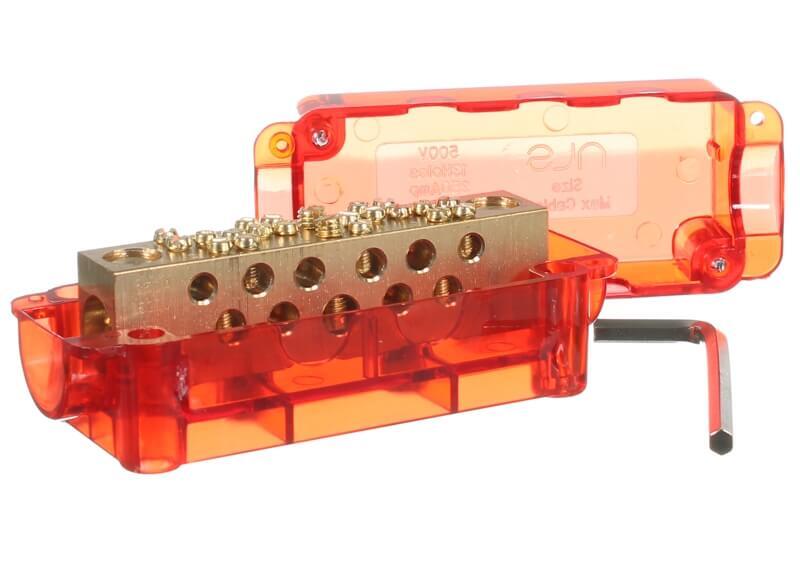

        NLS 30294 | Heavy Duty 13 Hole 350Amp 500v Active Link

        The 13 hole active link is a termination bar that allows multiple cables to be terminated into a meter board or enclosure. Normally the Active link is located in a switchboard and corresponding cables are conveniently terminated by an electrician. Active links save space and are very cost effective. Active links are numbered so that the corresponding cables can be easily identified.

        Features

        • 500V
        • 350A
        • 13 Hole Link
          • 2 Terminals: 4.6mm – Accommodates up to 10mm2 cables
          • 8 Terminals: 5.5mm – Accommodates up to 16mm2 cables
          • 1 Terminal: 8.0mm – Accommodates up to 35mm2 cables
          • 2 Terminals: 15.3mm – Accommodates up to 150mm2 cables
        • Length 120mm
        • Width 43mm
        • Depth 50mm

        (30294)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30294
        Shipping Weight 0.3930kg
        Shipping Width 0.045m
        Shipping Height 0.050m
        Shipping Length 0.120m
        Shipping Cubic 0.000270000m3
        TYPE VALUE
        Type Active / Neutral Links
        Brand National Light Sources
        Colour Red
        Width (mm) 43
        Depth (mm) 50
        Length (mm) 120
        Box increments (This item is sold individually) 5
        Number of Terminals 13
