        NLS 30319 | 40mm PVC Cable Gland Black
        $2.33 $2.12 ex. GST

        Learn more by watching our NLS 30319 | 40mm PVC Cable Gland Black video.

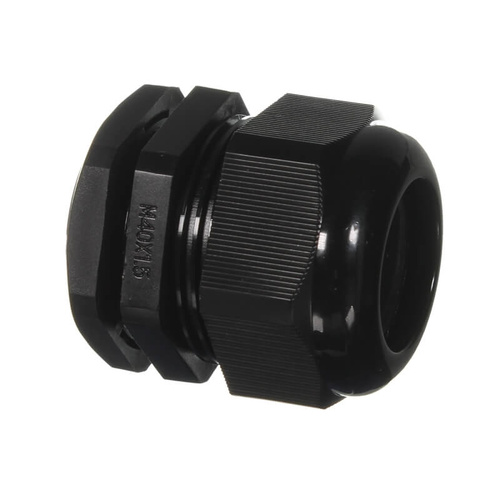

        NLS 30319 | 40mm PVC Cable Gland Black

        Cable glands are used in the electrical industry to protect cables as they pass through metal or plastic enclosures, walls, cabinets and switchboards. Once installed correctly the gland tightens around the cable making a tight seal to protect against moisture entering the penetration.

        Nylon Cable glands are designed to be installed in the following manner - mount the gland through a pre drilled hole, the lock nut will then tighten on the thread making a tight fit on the enclosure or panel. Insert the desired cable through the gland and tighten the gland up around the cable - the seal inside the cover will make a tight snug fit around the cable and protect it and hold it in position.

        Product Features

        • Large cable range 22-31mm OD
        • Rated to IP68 to prevent dust and water
        • Suitable for indoor or outdoor
        • Made from Nylon PA66 Black
        • UV Resistant
        • Complete with rubber gasket
        • Thread 15mm to go through penetration
        • 7 mm Lock ring
        • Width 58mm
        • Length 65mm



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct


        These specifications and characteristics outline physical, mechanical, electrical details.

        SKU 30319
        Barcode # 9336700005764
        Shipping Weight 0.0700kg
        Shipping Width 0.055m
        Shipping Height 0.055m
        Shipping Length 0.060m
        Shipping Cubic 0.000181000m3
        TYPE VALUE
        Type Cable Gland
        Brand National Light Sources
        Colour Black
        Length (mm) 65
        Protection IP68
        Box increments (This item is sold individually) 10
        Hole Width (mm) 41
        Cable size mm (OD) 22-31
