        NLS 30546 | 63Amp 4 Pole Modular Contactor 240v | 4 x N/O
        $31.77 $28.88 ex. GST
        Video

        Learn more by watching our NLS 30546 | 63Amp 4 Pole Modular Contactor 240v | 4 x N/O video.

        Description

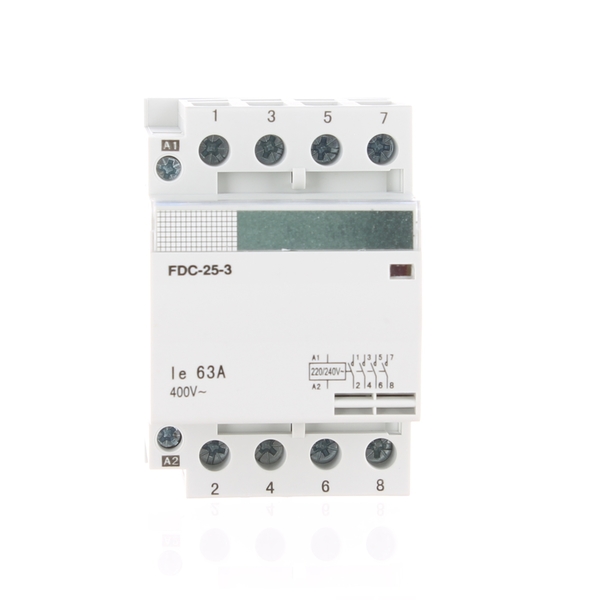

        NLS 30546 | 63Amp 4 Pole Modular Contactor 240v | 4 x N/O

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The NLS 30546 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The 30546 is a 63 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • 63A (Ac1-Ac7a)
          • Ac1 = Resistive Loads
          • Ac3 = Inductive Loads
          • Ac7a = Slightly inductive loads in household appliances
        • 25A ( Ac7b)
          • Ac7b = Motor-loads for household appliances
        • 4 x N/O Contacts
        • 240V Coil
        • 4 Pole
        • Din Mount

        (30546)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30546
        Barcode # 9336700011529
        Shipping Weight 0.3330kg
        Shipping Width 0.055m
        Shipping Height 0.055m
        Shipping Length 0.070m
        Shipping Cubic 0.000212000m3
        TYPE VALUE
        Type Contactor
        Brand National Light Sources
        Rated Current (A) 63
        Height (mm) 82
        Width (mm) 54
        Depth (mm) 68
        Protection IP20
        Mounting Din Rail
        Coil Voltage 220-240V
        Number of Poles 4
        Voltage (V) 250
        Number of Modules 3
        Contact Configuration 4 x N/O
