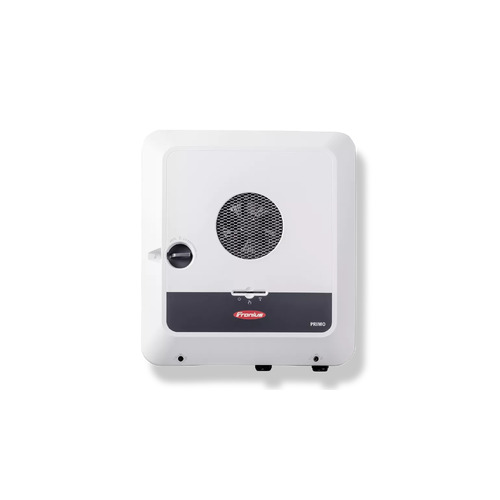

        FRONIUS PRIMOGEN245.0 | 5kW Solar Hybrid Inverter
        $2,356.20 $2,142.00 ex. GST
        Description

        FRONIUS PRIMOGEN245.0  | 5kW Solar Hybrid Inverter

        Description:

        Are you ready to transform your home into a self-sustaining powerhouse of clean energy? Look no further than the FRONIUS PRIMOGEN245.0, the pinnacle of solar technology designed to revolutionize the way you power your home. With this cutting-edge hybrid inverter at the heart of your energy system, you'll experience unrivalled benefits that go beyond just savings; you'll be paving the way for a sustainable and eco-friendly future.

        Benefits:

        • Maximum Efficiency: With a staggering 97.6% efficiency, the FRONIUS PRIMOGEN245.0 ensures that every ray of sunlight is harnessed to power your home efficiently, maximizing your energy savings.

        • Battery Compatibility: Seamlessly integrate battery storage for round-the-clock energy usage. Store excess energy during the day and enjoy uninterrupted power, even during grid outages, thanks to its integrated basic backup power supply with PV Point.

        • Energy Independence: Experience true energy self-sufficiency! Use the energy you generate not only for electricity but also for heating, cooling, and e-mobility, providing a holistic solution for all your energy needs.

        • Multi-Flow Technology: The FRONIUS PRIMOGEN245.0 boasts Multi-Flow Technology, allowing it to supply parallel energy flows, ensuring continuous power even in backup mode. Say goodbye to interruptions!

        • Flexible Connectivity: The PRIMOGEN245.0 is designed for versatility, accommodating DC input voltage ranging from 65-600V and MPP voltage range from 65-530V, making it compatible with a wide range of solar panels.

        • Future-Proof: As the cornerstone of your energy strategy, this inverter is ready for the future. Connect it to a battery storage system, heat pumps, and more to stay ahead of the curve in energy technology.

        FAQ:

        Q: What is the maximum output of the FRONIUS PRIMOGEN245.0?
        A: This exceptional solar hybrid inverter provides a maximum AC output power of 5000 VA, ensuring your home gets all the power it needs.

        Q: Can I use this inverter during a power outage?
        A: Absolutely! The PRIMOGEN245.0 features an integrated basic backup power supply with PV Point and can even be connected to a battery storage system for full backup power, ensuring you're never left in the dark.

        Q: Is it compatible with my existing solar panels?
        A: Most likely! The inverter accommodates a wide range of DC input voltages, making it compatible with various solar panels on the market.

        Q: How long does it take to install the PRIMOGEN245.0?
        A: Installation time can vary depending on your specific setup and the expertise of your installer. However, it's designed for straightforward installation by a professional.

        Unleash the power of the sun and take control of your energy destiny with the FRONIUS PRIMOGEN245.0 | 5kW Solar Hybrid Inverter. It's time to embark on a journey towards a greener, more sustainable future for your home. Don't miss out – order yours today and start reaping the rewards of clean, efficient energy!

        (PRIMOGEN245.0)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        INPUT DATA



        Number of MPP trackers

        2

        Max. PV input power

        5170 W

        Max. input current (Idc max)

        22 / 12 A

        Max. short circuit current, module array*

        36 / 19 A

        DC input voltage range (Udc min - Udc max)

        65 - 600 V

        Feed-in start voltage (Udc start)

        80 V

        Nominal input voltage (Udc,r)

        400 V

        MPP voltage range (Umpp min - Umpp max)

        230 - 530 V

        Usable MPP voltage range

        65 - 530 V

        Number of DC connections

        2+2

        Max. PV generator power (Pdc max)

        7,5 kWpeak

        OUTPUT DATA



        AC nominal output (Pac,r)

        5000 W

        Max. output power (Pac max)

        5000 VA

        Max. grid power demand

        5000 VA

        Max. AC output current

        27,5 A

        Grid connection (Uac,r)

        1~ NPE 220/230 V

        AC voltage range (Umin - Umax)

        155 - 270 V

        Frequency (fr)

        50 / 60 Hz

        Frequency range (fmin - fmax)

        45 - 65 Hz

        Total harmonic distortion

        <3% @Pnom (230/400VAC 50Hz)

        Power factor (cos φac,r)

        0,8 - 1 ind,/cap,

        Back-up power

        1~NPE 220 V / 230 V

        Nom. AC-Ausgangsstrom (220VAC)

        22,7 A

        Nom. AC-Ausgangsstrom (230VAC)

        21,7 A

        GENERAL DATA



        Width

        474 mm

        Height

        530 mm

        Depth

        165 mm

        Weight

        15,38 kg

        Weight incl. packaging

        19 kg

        Degree of protection

        IP66

        Protection class

        1

        Overvoltage category (DC / AC) 1)

        2 / 3

        Night-time consumption

        < 10 W

        Inverter design

        Transformerless

        Cooling

        Regulated air cooling

        Installation

        Indoor and outdoor installation

        Ambient temperature range

        -40°C - +60°C

        Permitted humidity

        0 - 100 %

        Max. altitude 2)

        4000m

        DC PV connection technology

        4x DC+ and 4x DC- push-in spring terminals 2.5 - 10 mm²

        DC battery connection technology

        1x BATT+ and 1x BATT- push-in spring terminals 2.5 - 10 mm²

        AC connection technology

        3 pole AC push-in spring terminals 2.5 - 10 mm² 3 pole backup power push-in spring terminals 1.5mm² - 10mm² 2x PE-screw terminals 2.5 - 16 mm² and  3x 2,5 - 10mm²

        Certificates and compliance with standards

        IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21, ABNT BNR 16149 and 16150, IEC 62116, IEC 61727 8)

        Back-up power functions

        PV Point, full backup 4)

        Compatible batteries 6)

        BYD Battery-Box Premium HVS/HVM & LG RESU FLEX 5)

        Sound emissions

        42 dB(A)

        Interference emission class

        B

        EFFICIENCY



        Max. efficiency (PV - grid)

        97,6 %

        European efficiency (ηEU)

        96,3 / 97,2 / 96,7 (230Vdc / 400Vdc / 530Vdc)

        η at 5% Pac,r 3)

        87,3 / 91,3 / 89,2 (230Vdc / 400Vdc / 530Vdc)

        η at 10% Pac,r 3)

        92,2 / 94,8 / 93,6 (230Vdc / 400Vdc / 530Vdc)

        η at 20% Pac,r 3)

        95,3 / 96,7 / 96,1 (230Vdc / 400Vdc / 530Vdc)

        η at 25% Pac,r 3)

        95,9 / 97,0 / 96,6 (230Vdc / 400Vdc / 530Vdc)

        η at 30% Pac,r 3)

        96,2 / 97,2 / 96,8 (230Vdc / 400Vdc / 530Vdc)

        η at 50% Pac,r 3)

        96,8 / 97,5 / 97,2 (230Vdc / 400Vdc / 530Vdc)

        η at 75% Pac,r 3)

        96,9 / 97,5 / 97,3 (230Vdc / 400Vdc / 530Vdc)

        η at 100% Pac,r 3)

        96,8 / 97,5 / 97,2 (230Vdc / 400Vdc / 530Vdc)

        MPP adaptation efficiency

        99,9

        PROTECTION DEVICES



        DC insulation measurement

        Yes

        Overload behaviour

        Operating point shift. Power limitation

        DC disconnector

        Yes

        DC Reverse polarity protection

        Yes

        INTERFACES



        WLAN / 2x Ethernet LAN

        Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)

        6x digital in/out + 6x digital in

        Interface to ripple control receiver, energy management

        Emergency stop (WSD)

        Yes

        Datalogger and web server

        Included

        2x RS485

        Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot

        Output Data PV Point



        Max continuous output power

        3000 VA

        Nom. output current (Iac max)

        13 A

        Grid connection

        1 ~ NPE 220 V / 230 V

        Frequency

        50 Hz / 60 Hz

        Max. switchover time PV-Point

        23 s

        Max. switchover time Full Backup

        35 s

        Frequency in backup power mode

        53 Hz

        BATTERY CONNECTION



        Number of DC connections

        1

        Max. input current (Idc max.)

        22 A

        DC input voltage range (Udc min - Udc max)

        150 V - 455 V 7)

        Max. input / output power (Depending on the connected battery)

        5170 W

        Max. AC charging power (Depending on the connected battery)

        5000 W

        Min. DC input voltage

        150 V

        Max. DC input voltage

        455 V

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fronius
        SKU PRIMOGEN245.0
        Shipping Weight 21.0000kg
        Shipping Width 0.524m
        Shipping Height 0.580m
        Shipping Length 0.215m
        Shipping Cubic 0.065342800m3
        TYPE VALUE
        Type PV Hybrid Inverter
        Brand Fronius
        Colour White
