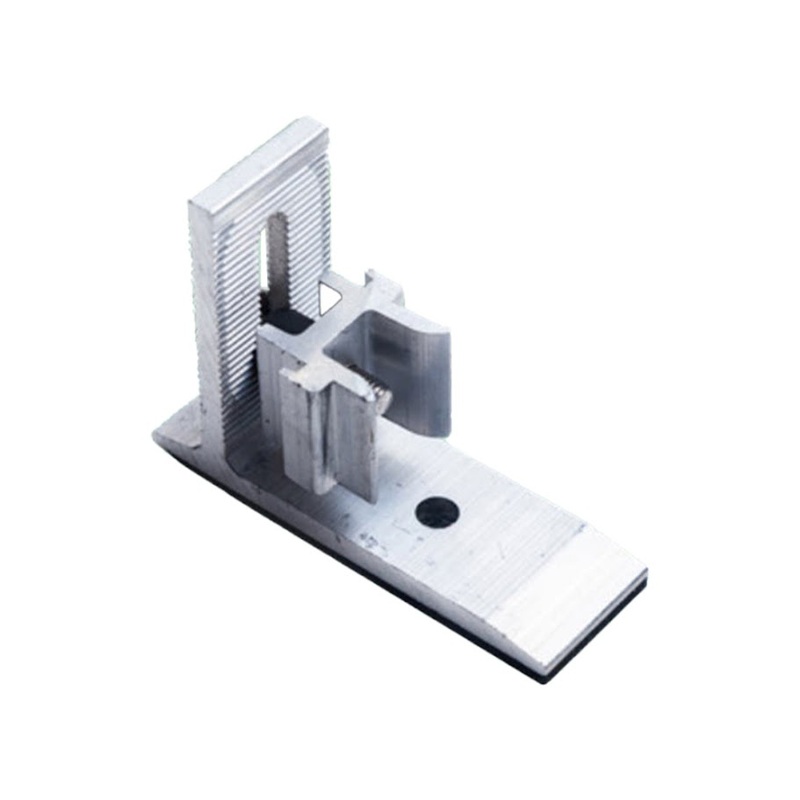

The Schletter 119026-102 is a Rapid2+ SML mounting foot that fixes solar modules direct to trapezoidal and corrugated sheet roofing. Schletter classes the 119026-102 as a sheet connection within the ProLine series, rather than as a roof hook for tiled roofs. It screws onto the roof covering itself, seating on an EPDM sealing rubber at the roof interface.
A sheet-metal roof gives nothing to hook under, so the fixing has to pass through the covering and seal behind it. The Rapid2+ SML screws direct to sheet or purlin, with the covering left in place. An EPDM sealing rubber sits between the foot and the sheet. The same foot takes modules in portrait or landscape, so the rail layout sets the orientation.
The 119026-102 sits in the ProLine series, built around aluminium EN AW-6063 T66 module rails. One foot covers both module orientations, so a mixed portrait and landscape array runs on a single sheet-connection part. The foot is anodised aluminium, in the same finish family as the ProLine rails it carries.
The Rapid2+ SML is classed as a trapezoidal and corrugated sheet connection, not a roof hook and not a standing seam fastening. It carries no earthing function, so earthing is not achieved by the foot. Fixings are not supplied, so the screw for the roof substrate is specified separately.
(119026-102)
The Schletter 119026-102 screws directly onto the roof covering. Schletter classes it as a trapezoidal and corrugated sheet connection, fixing either into the sheet itself or through to the purlin below. The covering is not lifted to fit the foot, and an EPDM sealing rubber seats between the aluminium and the roof sheet.
Screws are not supplied with the Schletter Rapid2+ SML. The fixing screw is ordered separately to suit the roof substrate, which may be timber or steel. Check the substrate before ordering, because the screw type differs between the two.
The Rapid2+ SML is part of the Schletter ProLine series and carries ProLine module rails, which are aluminium EN AW-6063 T66. Confirm rail selection against the Schletter ProLine installation manual for the specific array, because rail choice depends on span and load.
A roof hook fits tiled roofs and sits under the tile without pressure on it. The Rapid2+ SML is a sheet connection, fastening direct to trapezoidal or corrugated metal sheeting, or to the purlin beneath. The two are not interchangeable.
The Schletter 119026-102 is classed as a trapezoidal and corrugated sheet connection, not a roof hook, so it is not the fastening for a tiled roof. Schletter lists separate roof hooks for tiled roofing within the ProLine series.
The mounting foot carries no earthing function. On a Schletter ProLine array, earthing is handled by the module clamps, which have a built-in grounding function, and by the ProLine earthing clamp and earthing shim accessories. Specify the earthing components separately from the foot.
The Schletter 119026-102 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 25 Year
Commercial Use: 25 Year
Warranty Method: Return To Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Schletter |
| SKU | 119026-102 |
| Package Weight | 0.055kg |
| TYPE | VALUE |
|---|---|
| Type | Trapezoidal and Corrugated Sheet Connection |
| Brand | Schletter |
| Range | ProLine |
| Height (mm) | 78 |
| Width (mm) | 35 |
| Length (mm) | 105 |
| Mounting | Direct to sheet or purlin |
| Material | Aluminium |
| Weight (kg) | 0.055 |
