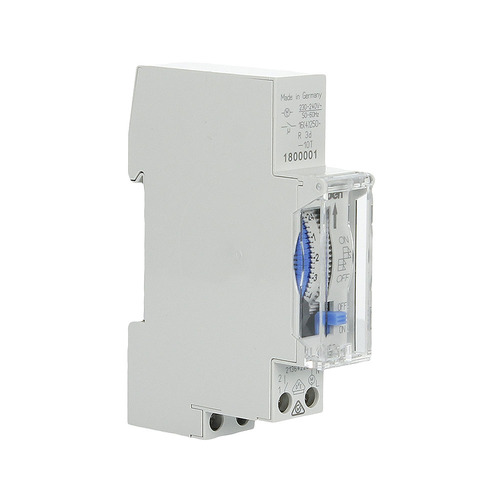

Theben SUL180a | Single pole timer 24 hour 16(4) amp Analogue (Back up Battery)
Learn more by watching our Theben SUL180a | Single pole timer 24 hour 16(4) amp Analogue (Back up Battery) video.
The Theben SUL180a single pole timer can be set to operate 96 different steps in a 24 hour period. It is rated at 16amps AC1 max power with an incandescent lamp is 1000W. Ideal for controlling lights, small fountain pumps, LED.
Supplied with Battery Back up - 3 days reserve
If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.
Features
Loads the timer can control without a contactor
You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.
(SUL180A)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Operating voltage | 230 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Width | 1 modules |
| Installation type | DIN rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 3 days |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 4 A |
| Incandescent/halogen lamp load | 1000 W |
| Energy saving lamps | 150 W |
| LED lamp < 2 W | 30 W |
| LED lamp 2-8 W | 300 W |
| LED lamp > 8 W | 300 W |
| Shortest switching times | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 1 s/day (quartz) |
| Type of contact | NO contact |
| Switching output | Potential-free and phase-independent |
| Number of switching segments | 96 |
| Stand-by consumption | ~0.5 W |
| Capacity loss max. | 0.7 W |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -10°C ... 50°C |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Theben |
| SKU | SUL180A |
| Barcode # | 4003468183311 |
| Shipping Weight | 0.0870kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.020m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000140000m3 |
| TYPE | VALUE |
|---|---|
| Type | Timer |
| Brand | Theben |
| Rated Current (A) | 16A (AC1) |
| Height (mm) | 90 |
| Width (mm) | 18 |
| Depth (mm) | 65 |
| Protection | IP20 |
| Mounting | Din Rail |
| Program Time | 24 Hours |
| Number of Modules | 1 |
| Programming Type | Analog |
| Battery Backup | 3 Days |
| Voltage (V) | 240 |
