        Theben SYN160a | Single pole timer 24 hour 16(4) amp Analogue (No Back up Battery)
        $67.48 $61.35 ex. GST

        Learn more by watching our Theben SYN160a | Single pole timer 24 hour 16(4) amp Analogue (No Back up Battery) video.

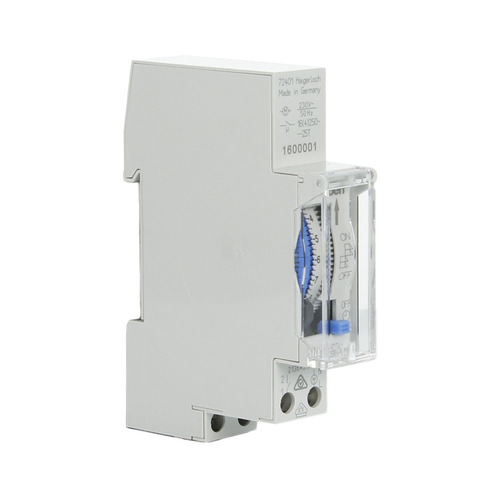

        Theben SYN160a |  Single pole timer 24 hour 16(4) amp Analogue (No Backup Battery)

        The Theben SYN160a single pole timer can be set to operate 96 different steps in a 24 hour period. It is rated at 16amps AC1 max power with an incandescent lamp is 1000W. Ideal for controlling lights, small fountain pumps, LED.

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.


        • Analogue time switch
        • 1 channel
        • Daily program
        • Without power reserve
        • 96 switching segments
        • Synchronised with mains
        • Shortest switching time: 15 minutes
        • Screw terminals
        • Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
        • Made in Germany

        Loads the timer can control without a contactor

        • Fluorescent bulbs control
          • Compact fluorescent lamps max. 150 W
        • Incandescent bulbs control:
          • 230 V incandescent lamps and halogen lamps: max. 1000 W

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Operating voltage 230 V AC
        Frequency 50 Hz
        Number of channels 1
        Width 1 module
        Installation type DIN rail
        Type of connection Screw terminals
        Drive Synchronous motor
        Program Daily program
        Switching capacity at 250 V AC, cos φ = 1 16 A
        Switching capacity at 250 V AC, cos φ = 0,6 4 A
        Incandescent/halogen lamp load 1000 W
        Energy saving lamps 150 W
        LED lamp < 2 W 30 W
        LED lamp 2-8 W 300 W
        LED lamp > 8 W 300 W
        Shortest switching times 15 min
        Programmable every 15 min
        Time accuracy at 25 °C Synchronised with mains
        Type of contact NO contact
        Switching output Potential-free and phase-independent
        Number of switching segments 96
        Stand-by consumption ~0.9 W
        Capacity loss max. 0.7 W
        Test approval VDE
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Type of protection IP 20
        Protection class II according to EN 60 730-1
        Ambient temperature -25°C ... 50°C

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU SYN160a
        Barcode # 4003468161609
        Shipping Weight 0.0820kg
        Shipping Width 0.100m
        Shipping Height 0.020m
        Shipping Length 0.070m
        Shipping Cubic 0.000140000m3
        TYPE VALUE
        Type Timer
        Brand Theben
        Rated Current (A) 16A (AC1)
        Height (mm) 90
        Width (mm) 18
        Depth (mm) 65
        Protection IP20
        Mounting Din Rail
        Program Time 24 Hours
        Number of Modules 1
        Programming Type Analog
        Battery Backup No
        Voltage (V) 240
