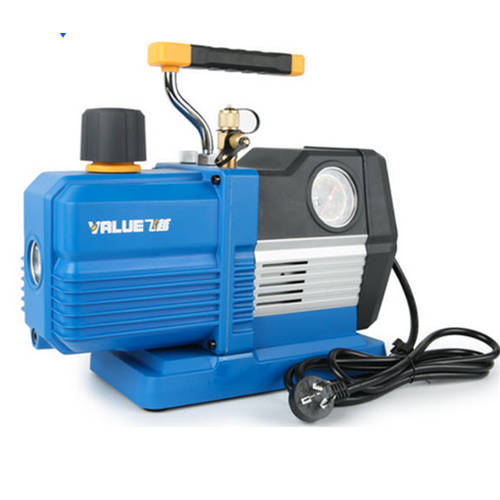

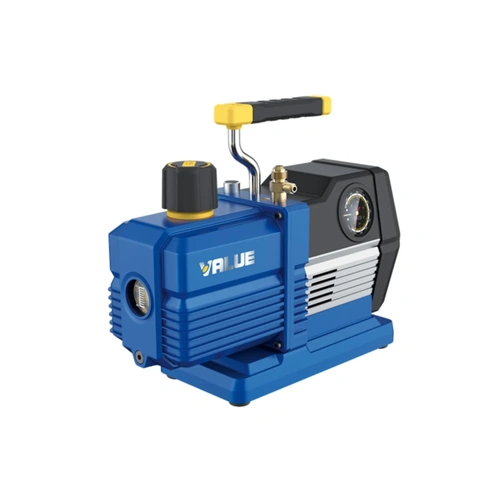

        VALUE VRP-8DV | Dual Stage 8.0 CFM DC Vacuum Pump R32 & R410

        The VALUE VRP-8DV is a high-performance dual-stage vacuum pump engineered for HVAC professionals working with refrigerants like R32, R410A, and R1234yf. Delivering a robust 8.0 CFM flow rate, it uses smart DC control for efficient, reliable operation and extended tool life.

        Designed with twin-cylinder construction, it provides stable airflow and precise vacuum measurement. It reaches a deep vacuum level of 15 microns—essential for effective system evacuation. The built-in gas ballast protects against moisture damage, while a solenoid valve prevents backflow during power failures. The anti-shock vacuum gauge is embedded in the body for easy, accurate diagnostics.

        With smart technology features like automatic control valves, extended evacuation cycles, and task reminders, this pump is a top choice for air conditioning and refrigeration service professionals.

        VRP-8DV Features

        • Dual Stage Twin-Cylinder Design: Provides deep vacuum capability and smooth, stable performance.
        • Smart Control Technology: Includes task reminders, auto shutoff valves, and extended evacuation cycles.
        • Embedded Vacuum Gauge: Anti-shock gauge gives clear, real-time vacuum status.
        • Gas Ballast + Solenoid Valve: Protects against moisture ingress and power-off backflow.
        • Portable & Compact: Only 11.6 kg, with dimensions of 350×145×252 mm for easy transport.

        VRP-8DV FAQ
        Q: What systems is the VRP-8DV compatible with?
        A: It works with R32, R134a, R410A, R22, and R1234yf refrigerants.

        Q: Does the vacuum pump have backflow protection?
        A: Yes, the built-in solenoid valve prevents contamination during power failure.

        Q: What type of oil fitting does the unit use?
        A: It’s compatible with 1/4", 3/8", and 1/2" SAE fittings.

        (VRP-8DV)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Model VRP-8DV
        Flow 226 l/min; 8 CFM
        Vacuum Level 0.2 Pa / 15 microns
        Motor Power 0.55 kW (0.75 KM)
        Compression Stages 2
        Power Supply 230 V
        Frequency 50 - 60 Hz
        Motor Speed at 50 Hz 2000 rpm
        Noise Level 72 dB
        Inlet Connection 1/4" and 3/8" SAE
        Oil Capacity 0.6 l
        Oil Type Mineral, viscosity: 68 mm²/s
        Dimensions 346 x 145 x 302 mm
        Weight 11.5 kg
        Protection Class IP44
        Operating Temperature 5°C to 40°C
        Storage Temperature -20°C to 60°C
        Minimum Oil Temp for Startup 5°C
        Shut-Off Valve Yes
        Vacuum Gauge Internal mechanical, 63 mm, Class 1.6, kPa/mbar
        Exhaust Plug Thread M33 x 1.5 mm
        Motor Type Inverter
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Value
        SKU VRP-8DV
        Package Weight 13.450kg
        Package Width 0.135m
        Package Height 0.302m
        Package Length 0.346m
        TYPE VALUE
        Type Vacuum Pump
        Brand Value
        Flow Rate 8.0 CFM 226 L/min
        Motor Power 3/4HP
        Inlet Port 1/4" & 3/8" SAE
        Oil Capacity 600ml
